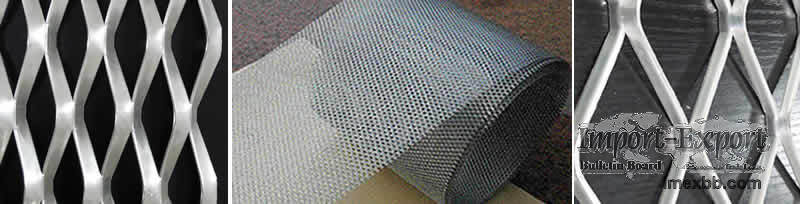

Expanded Flattened Titanium Mesh

Titanium Flattened Expanded Diamond Mesh Foil Net Grill for Battery Hydrogen
Electrode and Oxygen Electrode Sheet
Flattened titanium mesh is supplied in sheet metal or micro hole foils.
Titanium mesh is made from TA1 titanium foil, with a purity of over 99.6%. The
mesh sheet width can be 100 100 mm, supplied in slitted pieces or rimmed mesh
foils. The mesh thickness ranges from 0.1 to 0.25mm at allowed difference of ±
0.01 mm. Surface density: 150 ± 10g / m. Tensile strength is ≤5㎏. Standard
opening: 0.75 * 1.25MM.

Flattened titanium diamond mesh has smooth surface, diamond holes, no oil, non-
oxidation, no broken wires, no burrs or arc shape.
Suitable for battery making, used for hydrogen electrode, oxygen electrode and
super capacitors for proton exchange membrane fuel cells.

Titanium mesh is not as popular as expanded steel or aluminum, it is especially
suitable for filtration in the condition of strong acid and alkali environment
and electrode in the chemical industry, environmental industry, electroplating
industry, battery industry. The jointless continuity structure of expanded
stretched sheet makes it a highly efficient conductor sheet of electricity,
magnetic flux and heat used as battery nets.



Titanium Flattened Expanded Metal:


LWO-.325in
SWO-.150in
Strand Thickness-.035in
Strand Width-.055in
SL.No DESCRIPTION OF THE ITEM WITH SPECIFICATIONS THICKNESS PURITY
SIZE
1 TITANIUM METAL FOIL 0.05 ± 0.005 MM 99.95% min 350 mmx
2 TITANIUM EXPANDED MESH 0.05 ± 0.005 MM 99.95% min 150mm
width (min) roll
MESH dimensions: -
Length wise dim : 1.00mm; -
Side wise dim : 0.070mm;
Strand width : 0.2mm
Strand thickness : 0.15mm


Titanium Expanded Metal Battery Net( Drawing Attached )
Spec -1002
Thickness : 1.5mm
Size : 500mm X 200 mm
