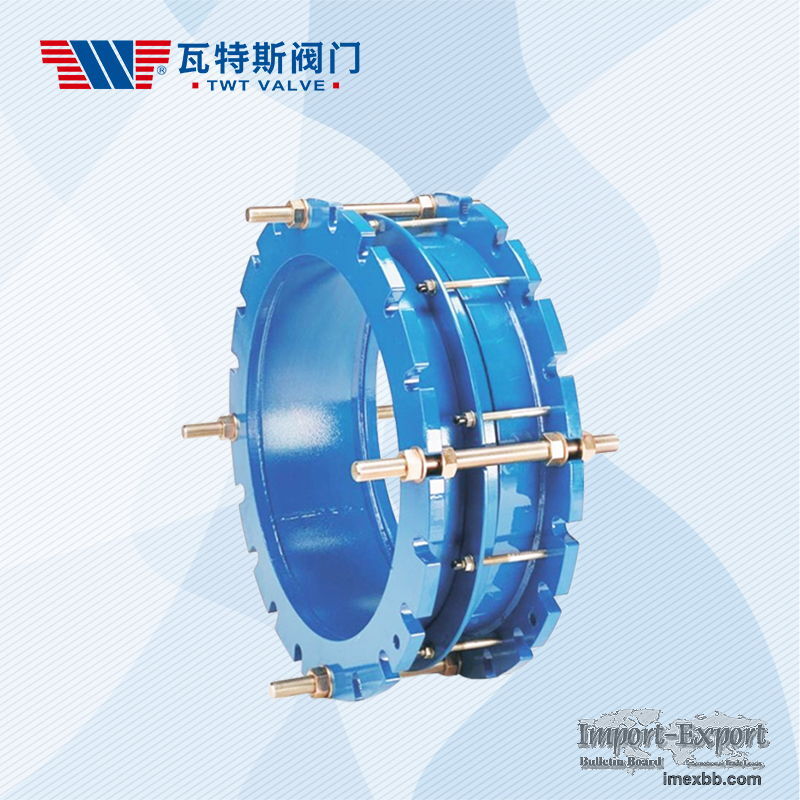

EX700 Series Expansion Joints

EX700 Series Expansion Joints

Fluid medium Water, oil, gas, etc.
Temperature Range -10℃～120℃
Pressure Ratings PN1.0～2.5MPa
Size Range DN25～DN4000
Connection Type Flanged；Welding；Thread
Connection standard GB·ANSI·DIN·BS
Valve Life 50 years
Body Materials Carbon steel；Stainless stee；Ductile Iron

China Expansion Joint manufacturer Features and advantages
The EX700 series includes AY gland loose compensation joint, AF flange loose,
BY gland loose joint compensation limit compensation joint, BF flange loose
limit compensation connector, CF flange loose force compensation joint and D
type large deflection loose tube compensation joint and other forms, meet the
different working conditions. China Expansion Joint factory reasonable product
structure design, reliable sealing performance, easy installation and
disassembly. The utility model has the advantages that the utility model can
freely stretch in the allowable range, and can compensate the axial
displacement, the deflection and the eccentricity in a certain range of the
pipeline.

Minimum Order: 1 pieces
