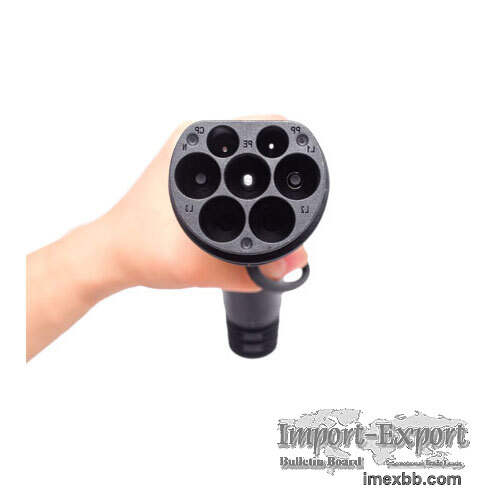

EV Charging Cable Type 2

Mechanical Properties
Mechanical life: no-load plug>10000times
Impact resistance: be able to afford 1m drop and 2tons vehicle run over
pressure
Insertion and extraction force:<100N

Electrical Performance
Rated current: 16A/20A/32A
Rated voltage: 250V/480V
Insulation resistance:>1000MΩ (DC500V)
Pins temperature rise:<50K
Withstand voltage: 2500V
Contact impedance: 0.5mΩMax

Raw Material
Shell material: thermoplastics, flame retardant grade UL94-0
Pin:Copper alloy, silver+top thermoplastic

Environmental Performance Temperature:
-30℃~+50℃

ev cable type 2 Features
Conform to the provisions and requirements of IEC62196-2 2016 2-llb, this iec
charger can charge all EV manufactured in Europe and USA, correctly and
effectively with high compatibility.

Using riveting pressure process with none screw with beautiful appearance.
Hand-held design conform to ergonomic principle, plug conveniently.

XLPO for cable insulation prolonging the aging resistance life-span. TPU sheath
improves the bending life and wear resistance of cable. The best material in
the market at present, conforms to the latest European Union standards.

Excellent internal waterproof protection performance, protection grade achieved
IP55 (working condition). The shell can effectively insulate water from body
and enhance the safety level even in bad weather or special circumstances.

Adopted double color coating technology, custom color accepted (regular color
orange, blue, green, grey, white)

Keep the laser logo space for customer. Provide OEM/ODM service to help
customer expand market easier

Application of EV type 2 charging cable
Apply to Vehicle - electric car charging cable type 2
For Tesla model3, for Tesla Model S, for Tesla Model X, for BAIC EU-Series, for
BYD Yuan/S2 EV, for BYD e5, for Chevrolet Volt, for Mia, for Mia Electric Van,
for Mitsubishi OUTLANDER PHEV, for Nissan NV200 SE Van, for Nissan leaf, for
SAIC Baojun E-Series,for SAIC Roewe Ei5 EV, for BMW 530e/Le, for Renault Zoe,
for Hyundai Kona EV,for BMW i3, for BYD Tang PHEV, for Chery eQ EV, for Toyota
Prius PHEV, for Volkswagen e-Golf, for Geely Emgrand EV,for Great Wall Ora R1
EV.

Application in area
Commercial EV Charging/Workplace EV Charging, Hotels EV Charginh,
Home/Residential EV Charging, Public EV charging

EV Charging Cable Type 2 Parameter
EV Charging Cable Type 2 - 3. 7KW (16A/250V) is ideal for charging your
electrical car Type2 to a maximum power of 3.7 KW.

it can charge all EV manufactured in Europe, correctly and effectively. It is
compatible with all the charging stations type2.

This cable has one type of connector 2 to the charging pile and another TYPE 2
for electric vehicle.

If you plug our cable into a more powerful charging pile/station than 3.7KW,our
cable will automatically limit the recharge power 3.7KW.

Similarly, if you plug our cable into a lower power charging pile/station, the
charging pile/station will also limit the charging power in this case.Our users
don't need to worry about the power safe problem when you charging.

AG ELECTRICAL EV Charging cable Type2 acquires all safety and production
certificates in electrical filed,ISO9001, ISO 14001, OHSAS 18001,
TUV(Rheinland)/IEC 62196&EN50620. There are type 2 charging cable 32A.
Product Type TYPE2 EV Charging Cable
Rated Current 16A, 32A
Rated Voltage 250V, 480V
Power 3.7KW, 11KW,7.4KW,22KW
Phase One Phase/Single Phase, Three Phase
Cable Specification H07BZ5-F3X2.5mm²+2x0.5mm²
H07BZ5-F5X2.5mm²+2x0.5mm²
H07BZ5-F3X6mm²+2x0.5mm²
H07BZ5-F5X6mm²+2x0.5mm²
Length Regular 5 m,custom length accepted
Color orange,blue,green,grey, white, custom color accepted
Warranty 12 months
Certificate CE/TUV(Rheinland)
Packaging Details Standard export wooden case or carton. Or as customer
requirements
Delivery Time (days) Within 15days, if quantity >100, to be negotiated

AG ELECTRICAL is one of the top electric car charging unit manufacturers, our
GBT EV Charging products are sold to many countries all over the world. Our GBT
EV Charging Components can meet the needs of different customers in different
areas to the maximum extent.

Minimum Order: 1 pieces
