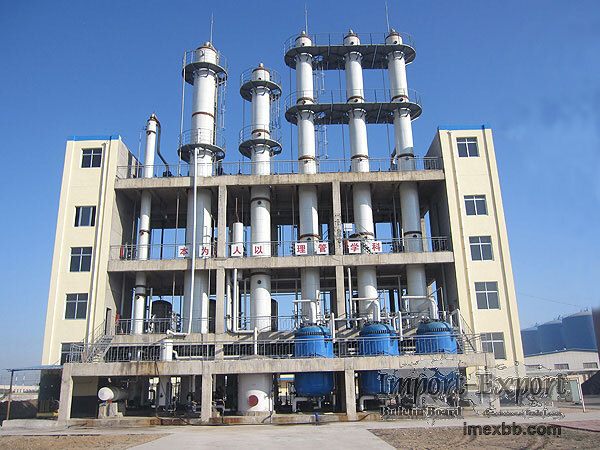

Ethyl Acetate Production Plant

Ethyl Acetate Production Plant
Product Description
Ethyl acetate is colorless transparent liquid, low toxicity, sweet smell,
irritating odor at higher concentration, volatile, sensitive to air, can absorb
moisture, making it slowly hydrolyzed and acidic reaction. Can be miscible with
chloroform, ethanol, acetone and ether, soluble in water (10%ml/ml). Can
dissolve some metal salts (such as lithium chloride, cobalt chloride, zinc
chloride, iron chloride, etc.) reaction. Relative density 0.902. Melting point
-83℃. Boiling point 77℃. Refractive index 1.3719. Flash point 7.2℃(open
cup). Flammable. Vapor can form explosive mixture with air. LD50 (rat, oral)
11.3ml/kg.
Processed in these plants using top quality ingredients, our offered products
are highly miscible with diethyl ether, acetone, ethanol & benzene and are
widely used in nail polish remover & glues.
There are 4 main prevailing processes for ethyl acetate production, i.e. Direct
Esterification Process, Acetaldehyde Condensation Process, Ethanol Dehydration
Process and Acetic Acid-Ethylene Addition Process. Each process has its
advantages and its applicable services. Our process is based on reactive-
distillation esterification, which is mature, low costing and suitable for
those with acetic acid feedstock.
Ethyl Acetate Plant Advantages
● This device adopts three-tower thermal coupling energy-saving technology,
which has the following advantages:
● Energy saving and environmental protection, far below the industry's 1.6t/t
steam consumption index;
● Large load operation flexibility of the device;
● High degree of self-control, simple operation;
● Use new catalysts;
● The process route is simple and the investment cost is low.
