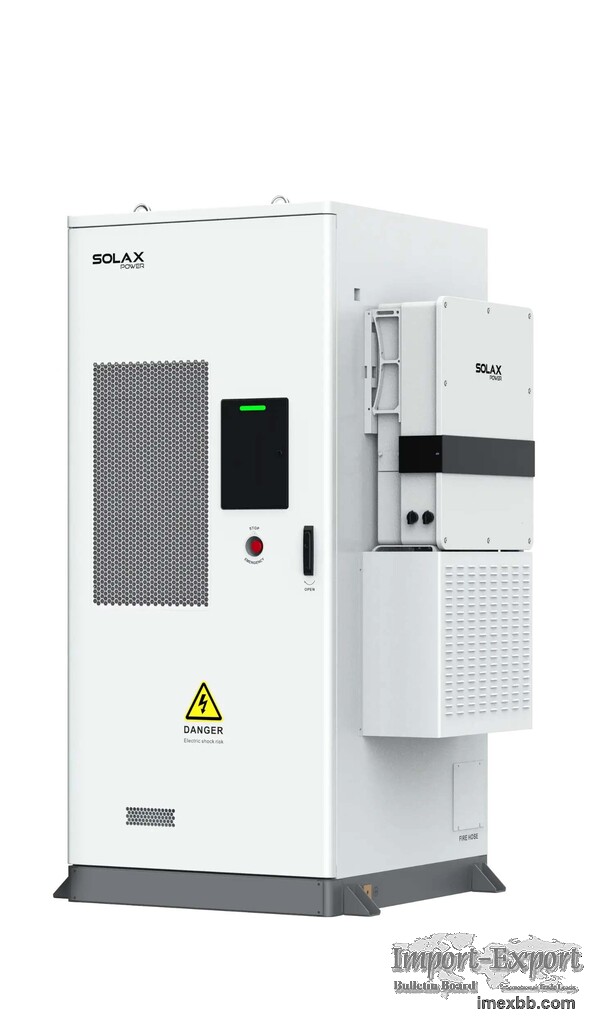

ESS-AELIO

Energy Storage System
ESS-AELIO
Hybrid C&I ESS Cabinet 50kW / 60kW 100~400kWh

Smart Management

Al-driven intelligent algorithms for high SOC and accuracy

VPP ready with SolaX Cloud (2030.5, OpenADR)

Support micro-grids and diverse scenarios

Smart Schedule, Smart Scene and 7×24h TOU

Wireless meter compatibility

High Performance

Max. 200% PV oversizing input

Global MPP scan for optimal energy harvest

Single cabinet with up to 200kWh, expandable to MWh-scale capacity

Dual battery ports, extend anytime 2/4/6/8h

Assured Reliability

Four-level fire safety protection

IP66 for inverter, IP55 for cabinet

Type II SPD on AC&DC side

Smart IV Curve scan for early panel diagnosis

Optional AFCI protection*

Support three-phase unbalance output

Flexible Adaptability

Grid-connected and off-grid support

Expandable design with modular capacity options

Max. 40A DC input current for high power solar panel

Why
ESS-AELIO
Aelio series is a highly integrated, all-in-one, C&I Hybrid energy storage
cabinet with multiple application scenarios. It has outstanding advantages
such as intelligent charge and discharge management, safety and
reliability, and simple operation and maintenance.

First of all, Aelio cabinet uses high-density, high-safety, and high-
performance LFP batteries. There are two models with capacity of 100kWh and
200kWh. When used in a single cabinet or multiple cabinets, it can charge
and discharge stably according to the set working modes at different time
periods, and the large-capacity battery cell of 280Ah also reduces the
intial cost of the system.

Secondly, the cabinet is equipped with a self-developed Energy Management
System (EMS) that can monitor the working status and abnormal alerts of
each battery cell, PCS, and fire protection system in real-time. The local
data storage capability allows for data analysis and verification for up to
1 year. The advanced EMS system also has leading advantages in intelligent
control of different smart operation strategies, autonomous scheduling
based on local electricity prices, and comprehensive management of
photovoltaic, energy storage systems, EV charging and generators at power
plant level. These features improve the overall system efficiency and
shorten the investment return period.

In addition, the cabinet also has multiple safety protection measures. It
has built-in protection functions such as overvoltage, overcurrent, and
overtemperature. It is also equipped with fireproof materials and 4 levels
of fire protection system, which can promptly detect and respond to
potential fire risks, effectively control the spread of fires and reduce
the risk of safety accidents.

The cabinet is suitable for various C&I PV&ESS scenarios, including peak
shaving, demand response, backup mode, photovoltaic and energy storage
integration, and stable load consumption curves. It also supports
applications such as virtual power plants(VPP) and frequency regulation

Now the price of solar x power inverter is reasonable, anything you need,
please contact us.
