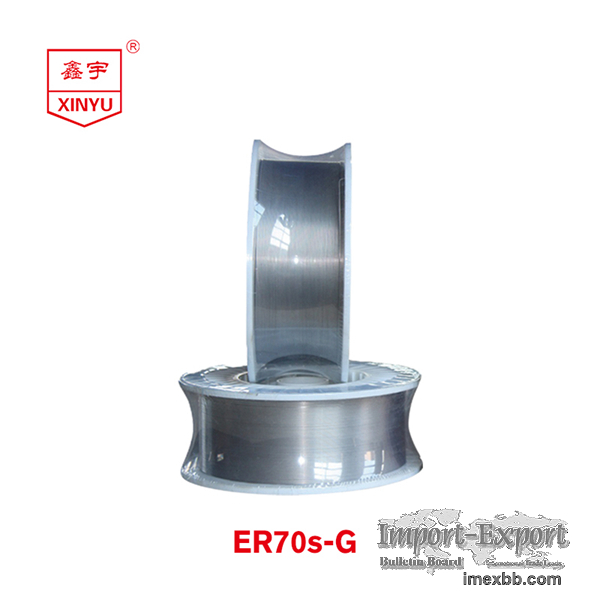

ER70s-G Welding Wire For Automotive Sheet Metal

ER50-G Welding Wire

Specification AWS ER70S-G
J I S YGW15
G B ER50-G
Shielding Gas 80%Ar+20%CO2

Feature & Use：
( 1 ) Operating condition is wide, from low to high current. It is a kind of
solid wire.
( 2 ) Containing special alloy, its arc is stable even in high current.
( 3 ) Adapt to 490 MPa steel , like ships, steel structures, and machinery etc.

Notice of ER50-G Welding Wire：
1. Please use specialized welding gas, eg: purity of CO2≥99.5%，H2O≤0.005%，
Ar≥99.99%. Gas flow: 20~25L/min.
2. Wind affects arc and welding pool, please take steps to block the wind.
3. There is smoke when welding, pay attention to ventilation.
4. Distance between Tip and base steel is about 15mm when current is below
250A; and 20~25mm when current is above 250A.
5. Welding materials should be stored in dry places.
6. Please check the welder ,wire feeder, gas regulator and heater before
operation.
7. Please keep the percentage of mixed gas stable and keep gas pressure stay
the same.
8. As to thin steel plate, downward welding in the inclined position or forward
welding is recommended,(pictures are followed below).
9. Please move plastic spool and basket spool in a correct way.

One chemical composition of deposited metal (wt%)：（80%Ar+20%CO2）
C Si Mn P S
0.08 0.42 1.04 0.016 0.025

Size & Current (DC+)：
Diameter (mm) 0.8 0.9 1.0 1.2 1.4 1.6
Current
 (Amp) PA 50 ~  180 50 ~  200 50 ~  220 80 ~  350
100 ~  470 200 ~  550
EGW 50 ~  120 50 ~  140 50 ~  140 50 ~  160
100 ~  180 —
PE 50 ~  100 50 ~  120 50 ~  120 50 ~  140
— —

We are Welding Wire Manufacturer and provide Quality High Strength Steel
Welding, Non Copper Coated Wire, Submerged Arc & Stainless Steel Welding
Wire.If you are interested, please click here to contact us immediately.

Minimum Order: 10 tons
