ER18505H+EPC1520 battery pack

Technical Specification
Overviews
This ER18505H+EPC1520 battery pack can be used in various fields, mainly used
in smart meters (water meters, electricity meters, gas meters), computer
support power supplies, medical equipment, wireless communications, oil
drilling, portable communications equipment, scientific research instruments,
remote data acquisition systems, military applications and Other electric
equipment.
Structure and Appearance
Structure: Composed of ER18505H battery and EPC1520 capacitor in parallel.
Appearance condition: Visually inspect the surface of the product without rust
or leakage, and the mark is clear.
Basic Features
Item Subject Features
Specification ER18505H+EPC1520
Norminal voltage 3.6V
norminal capacity 4000mAh(2mA, 25±3℃, cut off at 2.0V) Note:
The capacity of the battery varies with the discharge current, ambient
temperature and termination voltage.
Max. continuous discharge current 500mA (Can provide higher
current, consult SUNJ company for details)
Max. available pulse current 2000mA (It varies according to the
pulse performance (frequency, duration), temperature, battery condition and the
minimum voltage acceptable to the applied equipment)Pulse current discharge is
provided by EPC1520. The main performance of EPC1520 is as follows:Voltage
range2.5~3.67VNorminal capacity140AsMax. Dimensionsφ15.1mm x h 21.0mmNorminal
weightAbout 10gMax. continuous discharge current500mAMax. available pulse
current2000mA
Operating temperature -40℃~+85℃（When the operating temperature is
higher than normal temperature, it may result in a decrease in the capacity at
the beginning of the pulse and a low voltage reading）
Standard weight Max. 45g

UNJ provides a combined power solution of ER battery and EPC battery capacitor,
which can meet the needs of high pulse discharge while maintaining the
characteristics of large capacity of the battery, in addition, 3.6V lithium ion
battery pack can effectively reduce the lag of lithium sub-battery discharge
and improve battery performance.

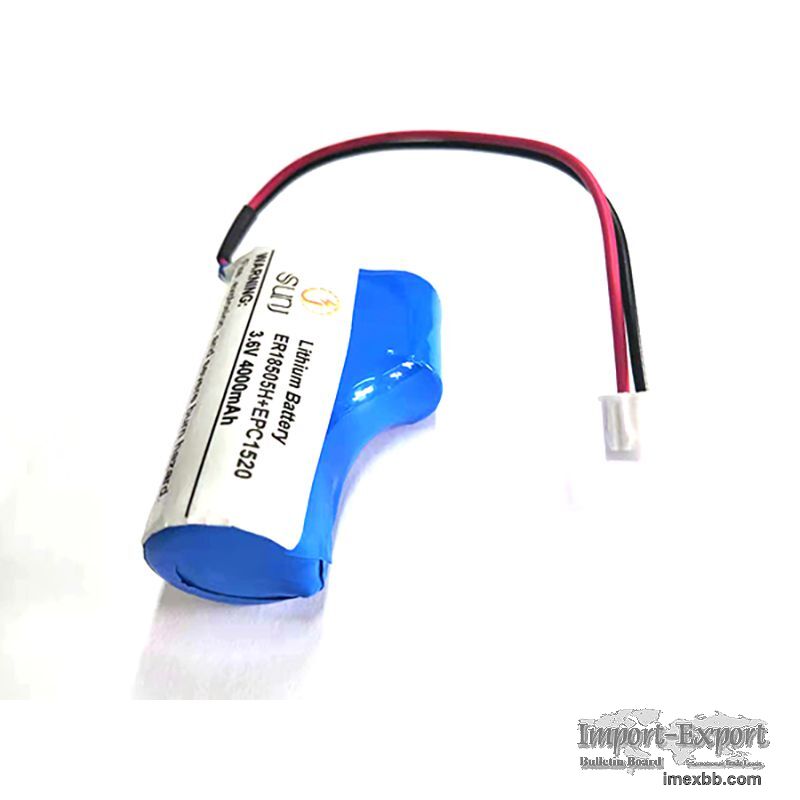

ER18505H+EPC1520 battery pack
