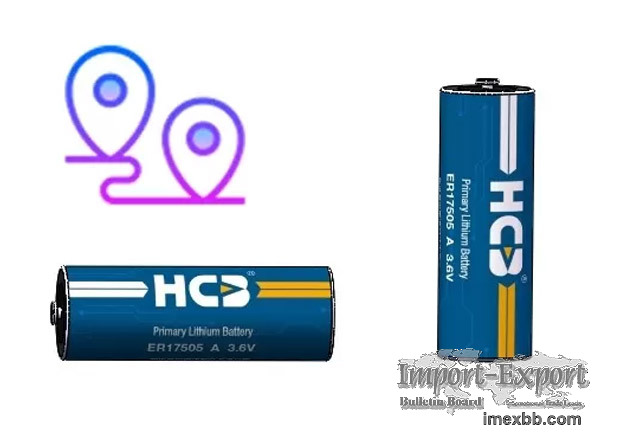

ER17505 Li-SOCl2 Cylindrical Battery

Lithium Primary Battery ER17505

3600 mAh capacity

Wide Temperature Range Long Shelf Life

3.6V Lithium-thionyl chloride [Li-SOCl2] A-size bobbin cell ER14250 Widely used
in utilities, Medical,Stainless Steel Container, somke detector, water meter,
electricity meter, gas meter, heat meter.
Product details of er17505 lithium battery

Advantage of ER17505 Li-SOCl2 Cylindrical Battery


High and Stable Voltage

Energy Density up to 590Wh/kg

Long Shelf Life (less than 1% per year after 1 year of storage at +25℃)

Wide Operating Temperature (-55℃~+85℃)

Specification of ER17505 Li-SOCl2 Cylindrical Battery
1. Battery Characteristic of ER17505 Li-SOCl2 Cylindrical Battery
High Voltage

We offer the nominal voltage of up to 3.6V, the working voltage varies with the
load, generally between 3.3V ~ 3.6V.

High Energy Density

We provide a specific energy density up to 510Wh/kg.

Wide Operating Temperature Range

The battery with strong adaptability to temperature can be in work between
-55℃ ~ +85℃.

Stable Operating Voltage

Battery voltage is very stable during work, more than 90% of the capacity could
be output on a fixed high voltage platform.

Long Shelf Life

Under the condition of normal temperature, the battery self-discharge rate of
no more than 2% per year.

Battery sealing using the fully sealed structure to reduce the leakage of the
battery, make the battery can be stored at room temperature for more than 10
years.

2. Main Applications of ER17505 Li-SOCl2 Cylindrical Battery
Medical devices

Cardiac pacemaker, respirator, oxygenator, inspection devices, monitoring
devices, infusion pump, etc.

IoT devices

Smoke detectors, security alarms, seismometers, locking systems, monitoring
systems, etc.

Tracking

RFID products, road toll transponder, IC cards, etc.

If you want to know more types of lithium battery solution, please visit our
website.

Minimum Order: 100 pieces
