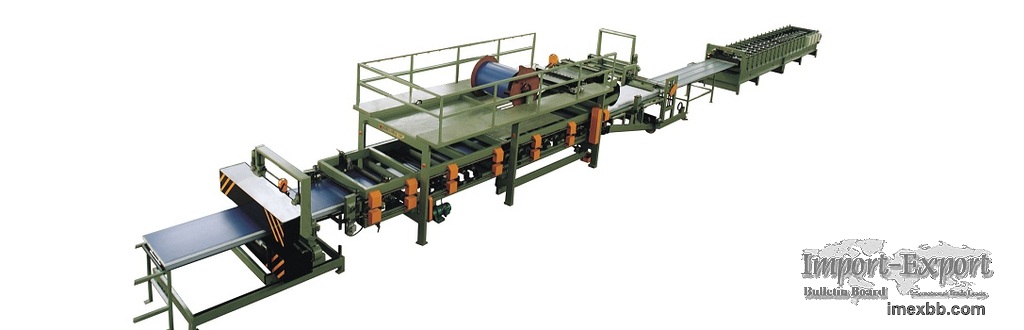

EPS Sandwich Panel Production Line

Main structure features of EPS Sandwich Panel Machine
1) This EPS sandwich panel making machine has the specification: nice
appearance, low noise and high efficiency.
2) The EPS Sandwich Panel Production Line is welded by H-beam with shot
blasting treatment on the surface, so the whole structure is simple and stable.
3) Consecutive laminating body transmission adopts worm and worm gear in order
to control the producing speed steadily. The consecutive laminating body can
cut to length with the advanced frequency control.
4) Three groups heating system to adapt the environmental temperature in
different places.
5) Glue Providing system is driven individually. The horizontal compound, glue
evenly, without any pollution.
6) Consecutive laminating body is long to guarantee the flatness of the
sandwich panel.
7) The moving stroke of the cutting system is long to extend the life of the
cutting tool.

Contact us for EPS sandwich panel machine price! Or contact us for more
information about other sandwich panel production line/machinery.

Main Technical Parameter of EPS Sandwich Panel Production Line
Specification of Sandwich panel produced by Jinggong sandwich panel making
machine:
Length: Min cutting length is 2 m              Max cutting length is 15m
Width: (see profile drawing)
Thickness: (see profile drawing)

Raw material specification:
coil thickness: 0.4～0.6 mm (steel be flat without ups and downs, deformation
and bending)
sheet yield stress: ≤235MPacoil max width: 1200 mm  (tolerance±2mm)
coil max weight: 4Tcoil ID: Φ500 and Φ600 mm
coil OD: Φ1000 mm
EPS material: density is≥18㎏/m3, unstraight of each side ≤1㎜/m, curve ≤3
㎜/m, surface be even, unevenness smaller than 1.5mm/m, EPS material single
piece length more than 3m.
Material suitable shape: see profile drawing
Material suitable width: minimum shall be 1/2mm of the finished panel width.

EPS panel production line specification:
Work line speed: 1000-3000mm/min (frequency speed adjustment).Attention:
depending on glue brand, temperature and proficiency of operators.
Machine length: about 40 m
Working height: 1050 mm（panel output height）
Laminating effective length: 7.5m
Control way: adopt industrial computer PLC
Total power: about 35 kw
Power: 380V/3phase/50 Hz
control voltage: 24 V/110 V/220 V
pneumatic: 0.7 Mpa  (self-prepared by the factory)
best working temperature: around 25℃

Main Structure Components Of EPS Sandwich Panel Production Line
This EPS sandwich panel line consists of one roll forming machine and one
laminating machine. It adopts international roll forming technology, laminating
transmission technology, air-actuated and electric & hydraulic control
technology. The whole EPS panel production line only needs 6 or 7 workers.


The whole sandwich panel machine line consists of two parts: roll forming part
and laminator part.
1)Roll forming partThe roll forming machine consists of a hydraulic uncoiler,
guiding system, filming system, flat sheet slitting system, roll forming
system, panel support frame, assistant forming machine and so on.
2)2) Laminating bodyThis part consists of a guiding device, laminating body,
cutting system, glue feeding system, support device and electric control
system, etc.

Panel Drawings Of EPS Sandwich Panel Production Line

Jinggong is a professional purlin roll forming machine manufacturers, we
provide c purlin roll former, building materials machinery, construction
materials equipment, sandwich panel lines and etc. Want to know eps sandwich
panel machine price or more? Please contact us.
