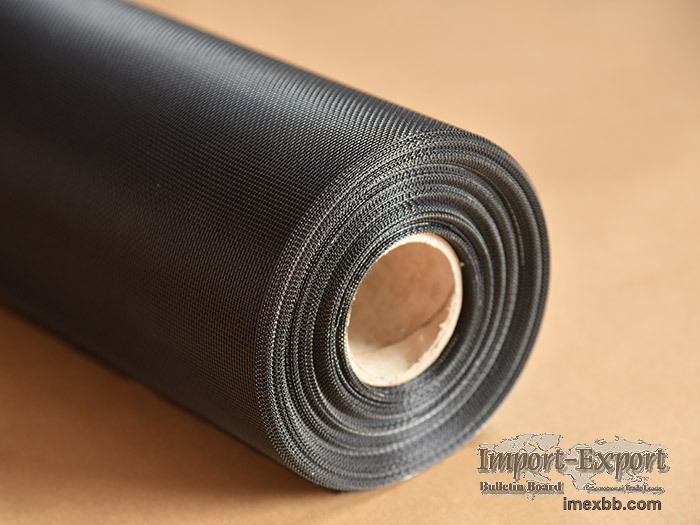

Epoxy Coated Wire Mesh

Product Brief Introduction:
Epoxy coated wire mesh is referred to epoxy mesh.
The manufacturing process of epoxy mesh is to use the principle of
electrostatic spraying to absorb eco-friendly epoxy resin powder on the
surface of the wire mesh woven from different metal wires. After a certain
period of high temperature curing, the epoxy resin powder is melted and
covered on the substrate. A dense protective layer is formed on the surface
of the mesh.
Epoxy powder is divided into indoor and outdoor types, and special powders
can be customized and developed according to customer requirements.
The substrate mesh usually includes low carbon steel mesh, aluminum alloy
mesh and stainless steel mesh.
Epoxy mesh manufacturing standard: GB/T 17492-2019
Woven pattern: Plain wave rough edge / selvaged edge
Features of Epoxy Coated Wire Mesh:
After epoxy coating, the interweaving point of the metal mesh is fixed, the
warp and weft are vertical, the mesh holes is uniform, not easy to loose and
deform, the support for the filter paper is strengthened, the mesh surface
is soft, easy to fold and form; the coating thickness is uniform with even
and consistent color.
Application and Categories of Epoxy Coated Wire Mesh:
According to different Application, epoxy mesh can be divided into
industrial epoxy mesh and civil epoxy mesh.
Industrial epoxy mesh mainly refers to aluminum alloy epoxy mesh and low-
carbon steel epoxy mesh, which are mainly used as the filter element support
mesh of the filter, also known as hydraulic filter element protection mesh,
hydraulic filter element metal mesh.
Civil epoxy mesh mainly refers to stainless steel epoxy mesh, which is
mainly used in high-end residential and commercial building as security
window screens.
Advantages of Jiushen Epoxy Coated Wire Mesh:
After coating, the mesh is square without deformation and the surface is
flat with the maximum undulating height on the platform ≤10mm. The powder
coating amount is controlled at 20-35g/㎡, with moderate interleaving
points. The width of finished product can reach 1,600mm.
The surface treatment powder adopts low temperature fast curing oil-
resistant matting resin paint (160℃/90s) and low temperature curing
weather-resistant matting polyester paint (160℃/90s). The powder has
obtained RoHS and REACH certification.
It is resistant to oil immersion and corrosion. It can pass the detection of
various brands of hydraulic oil media around the world at different
temperatures and times. The coating surface has no change. It is suitable
for special hydraulic filter products of high temperature and high pressure.
Weather corrosion resistance, according to ASTM B117-09 salt spray test
standard, continuous test 96H coating surface unchanged, suitable for use in
harsh environment air filter and outdoor environment.

Strong adhesion, can pass H grade pencil test, 1kg/50cm impact test, scratch
test, anti-fatigue test.
High bending resistance, can be folded through a steel rod with a radius of
curvature of 1mm, no cracks on the surface
Industrial selected high-quality steel and wire drawing annealing process,
combined with the new weaving process, the mesh surface is soft, and the
elastic modulus is low.
After coating, it’s easy to fold and shape. The warp and weft wires are
firmly bonded after the product is processed and are not easy to fall off.
The edges will not fall off after slitting and cutting.
The adhesion force of the coating interlacing point can reach 0.7kg.
