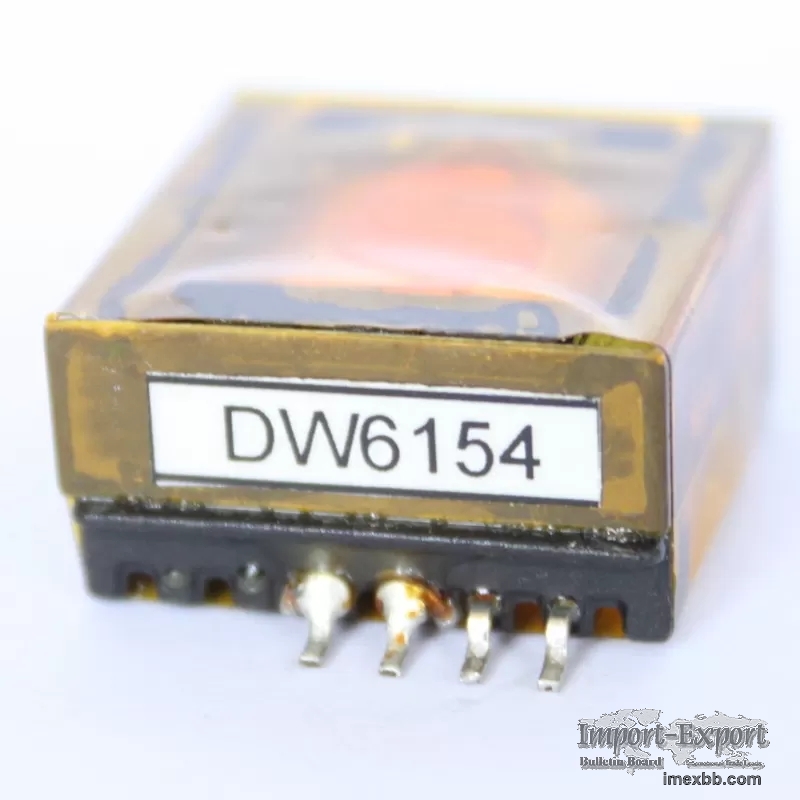

EPC19 240V 12V 19V 50W 70W HF Transformer High Frequency Current Customized

EPC19 EPC Series High-Frequency Transformer Customized Manufacture DW6154





Feature of Different Transformer

EE Transformer

applied in the switching power supply,main power transformer

EF Transformer

applied in the switching power supply,main power transformer

EFD Transformer

Auxiliary powr transformer,main power transformer,choke coils

EPC Transformer

Auxiliary powr transformer,main power transformer

PQ Transformer

applied in the linear filter,choke,pulse transformer,drive transformer

UU Transformer

varieties of switching power supply transformer,coke coils et

EC/EER/ER Transformer

applied in the linear filter ,current tranformer,smoothing choke coil,drive
transformer, switching power transformers and chokes

RM Transformer

filters, inductors and transformers for telecommunication other electronic
equipment

POT Transformer

filters for telecommunication equipment,and various kinds of inductors and
transformers

DR Core

Choke coils, Peaking coils, Linearity coils, Alarm coils, Power choke coils, Fixed
choke coils, Filtering coils,etc;

EI Transformer

Various kinds of transformers and chokes.

TOROIDAL core

Pulse and wide-band transformers, various types of filters, inductors and chokes.


1. Drawing (Unit:mm)
EPC19 240V 12V 19V 50W 70W HF Transformer High Frequency Current Customized 0



2. Environmental Conditions

Storage Temperature: -40--85˚C；
Enviornmental Temperature: -40--85˚C;
Operating Temperature: 130˚C MAX;
Relative Humidity: 5%-95%;
Long Term Durability Test.
3. Electrical Specification

Item Unit Test Lead Test Condition MIN NOR MAX
Inductance Value µH 11-12 100KHz,0.3V, Ser 157 165 173
Leakage Inductance µH 11-12
100KHz,0.3V, Ser

(Other Winding Short Circuit)

/ / 4
Q Value / 11-12 100KHz,0.3V, Ser 70 / /
Dielectric
Strength mA N1,N2－N3 500Vac,60s / / 1
mA N1,N2－Core 500Vac,60s / / 1
mA N3－Core 500Vac,60s / / 1
Direct Current Resistance mΩ 11-12 25℃ / / 110
mΩ 7-8 25℃ / / 740
mΩ 3-4 25℃ / / 80
