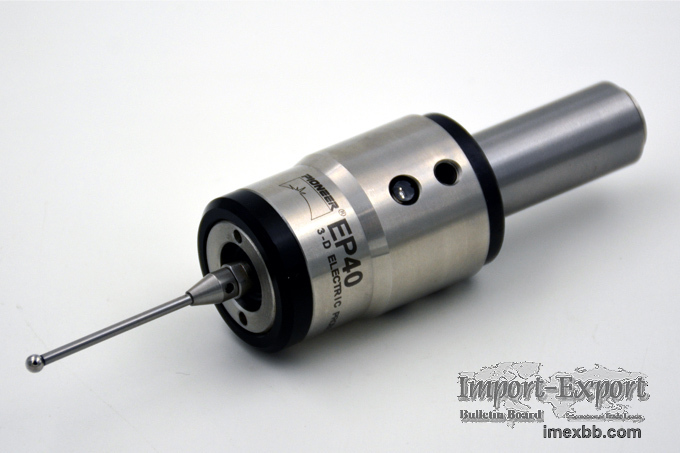

EP40 Electrical Probe

EP40 electric probe includes a electric probe unit and a 20mm diameter
cylindrical shank. It senses the contact with the metal workpiece through its
conductivity,when the stylus touches the surface, the LED indicator lights up.
It used to check work pieces of all kinds of solid materials with electrical
conductivity.

EP40 electric probe includes a electric probe unit and a 20mm diameter
cylindrical shank. It senses the contact with the metal workpiece through its
conductivity,when the stylus touches the surface, the LED indicator lights up.
It used to check work pieces of all kinds of solid materials with electrical
conductivity.

Parameter of EP40 Electrical Probe

EP40：
Measuring direction ±X，±Y，+Z
Arbitrary direction swinging angle X-Y±12°, Z +5 mm
Repeatability （2σ） ≤ 2 μm；
Trigger force in Z direction 1000（g）
Trigger force in X-Y direction 65-130（g）
Battery model LR1, 1.5V, 700 mAh.
Model of the standard stylus M4-P50-RB6-S36
Seal grade IP68

Application of EP40 Electrical Probe
EP40 is used to measure solid workpieces with conductive properties; such as
aluminum workpiece, stainless steel workpiece.

Direct measurement of steps, slots, external features, and contours of
workpiece datum surfaces or edges.

EP40 straight shank can used with different kinds of taper shank in different
kinds of machine tools.

Technical Characteristics of EP40 Electrical Probe
With wireless design, it does not hinder the movement of the machine tool and
is easy to install

Three LED indicator lights are used to show the trigger state of the probe.

EP40 with a straight shank, size is smaller.

Harbin Pioneer M&E Technical Development Co, Ltd is a professional probe
company, we provide probe cable, machine probe and etc. Want to know more?
Please contact us.
