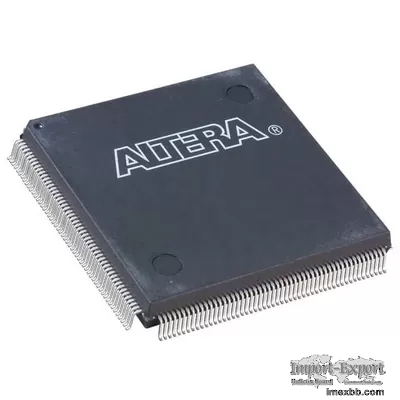

EP1K50QI208-2 Integrated Circuit Chips

PRODUCT DESCRIPTION
New Original Factory Parts IC Chip EP1K50QI208-2 Integrated Circuit In Stock

Altera® ACEX 1K devices provide a die-efficient, low-cost architecture by
combining look-up table (LUT) architecture with EABs. LUT-based logic provides
optimized performance and efficiency for data-path, register intensive,
mathematical, or digital signal processing (DSP) designs, while EABs implement
RAM, ROM, dual-port RAM, or first-in first-out (FIFO) functions. These elements
make ACEX 1K suitable for complex logic functions and memory functions such as
digital signal processing, wide data-path manipulation, data transformation and
microcontrollers, as required in high-performance communications applications.
Based on reconfigurable CMOS SRAM elements, the ACEX 1K architecture
incorporates all features necessary to implement common gate array
megafunctions, along with a high pin count to enable an effective interface
with system components. The advanced process and the low voltage requirement of
the 2.5-V core allow ACEX 1K devices to meet the requirements of low-cost,
high-volume applications ranging from DSL modems to low-cost switches.

Specifications
Product Attribute Attribute Value
Manufacturer: Intel
Product Category: FPGA - Field Programmable Gate Array
RoHS: N
Series: ACEX 1K EP1K50
Number of Logic Elements: 2880 LE
Number of I/Os: 147 I/O
Supply Voltage - Min: 2.5 V
Supply Voltage - Max: 2.5 V
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Mounting Style: SMD/SMT
Package / Case: QFP-208
Packaging: Tray
Brand: Intel / Altera
Maximum Operating Frequency: 80 MHz
Moisture Sensitive: Yes
Number of Gates: 199000
Number of Logic Array Blocks - LABs: 360 LAB
Operating Supply Current: 5 mA
Operating Supply Voltage: 2.5 V
Product Type: FPGA - Field Programmable Gate Array
Subcategory: Programmable Logic ICs
Total Memory: 40960 bit
Tradename: ACEX 1K
Part # Aliases: 972623
