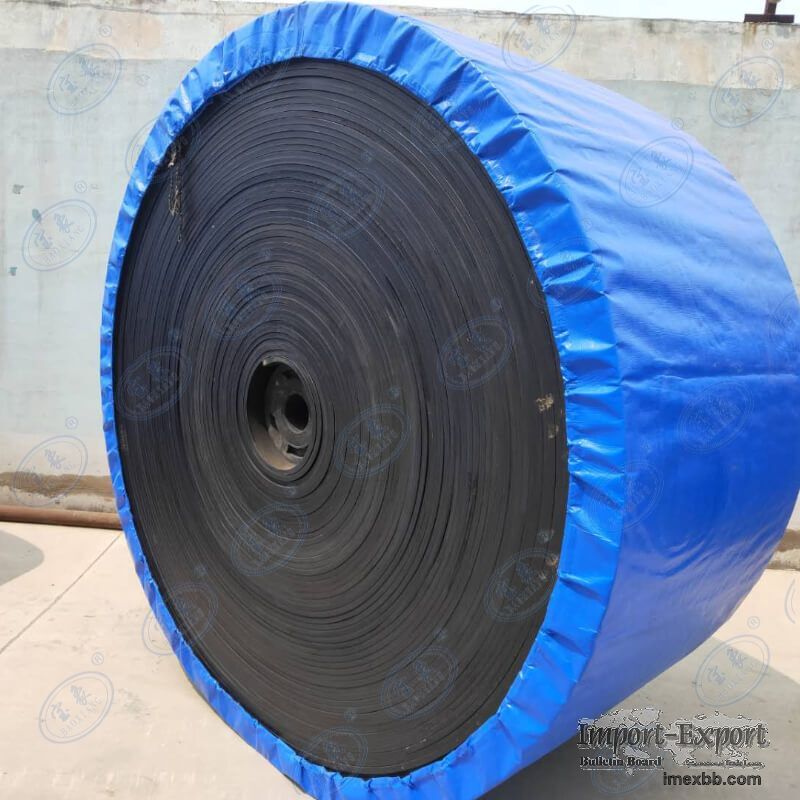

EP Nylon Conveyor Belt portable conveyor belt

EP Nylon Conveyor Belt portable conveyor belt nylon fabric conveyor belt
rubber conveyor belt manufacturers

PRODUCT DESCRIPTION
Place of Origin: Hebei, China
Brand Name: Baoxiang
product: conveyor belt

Physical Properties of Rubber Cover (before aging) of Wholesale Conveyor Belt
Grade Tensile Strength/Mpa ≥ Breaking Elongation/% ≥ Abrasion
Loss/mm3 ≤
H 24 450 120
D 18 400 100
L 15 350 200
Note:Grade H-used for transporting sharp, abrasive materials which can damage
belts badly.
Grade D-used for transporting highly abrasive materials.
Grade L-used for transporting medium-abrasion materials.

After-aging properties of rubber cover(70℃, 7days):
Tensile strength and breaking elongation are both not lower than 75% of before-
aging values.
Full-thickness Tensile Properties of Portable Conveyor Belt

a. Longitudinal tensile strength, not less than the below table. (N/mm)
Nominal belt type 160 200 250 315 400 500 630
800 1000 1250 1600 2000 2500 3150

b. Full thickness, longitudinal elongation at reference force, not more than
4%.
c. Ply adhesion:
Item Ply to ply Rubber cover to ply
Rubber cover thickness 0.8-1.5mm Rubber cover thickness
>1.5mm
All samples average value/ (N/mm) ≥ 4.5 3.2 3.5
All samples min peak value/ (N/mm) ≥ 3.9 2.4 2.9
Note: All samples max peak value is not more than 20N/mm.

d. Straightness not more than 25mm

Specification
Belt width（mm） Cloth layer number Thickness of covering glue
（mm）
Working surface Non-working surface
400 3~4 4.5 3.0 3.0 1.5
500 3~5 4.5 3.0 3.0 1.5
600 3~5 6.0 4.5 3.0 3.0 1.5
650 3~5 6.0 4.5 3.0 3.0 1.5
800 3~6 6.0 4.5 3.0 4.5 3.0 1.5
1000 3~7 6.0 4.5 3.0 4.5 3.0 1.5
1200 4~7 6.0 4.5 4.5 3.0 1.5
1400 4~7 6.0 4.5 4.5 3.0
1600 4~7 6.0 4.5 4.5 3.0
1800 4~7 6.0 4.5 4.5 3.0
2000 4~7 6.0 4.5 4.5 3.0
2200 4~7 6.0 4.5 4.5 3.0

Refractory type conforms to GB10822-89 standard

Physical properties of cover:
Tensile strength of cover MPa ≥ 10
Elongation at break of overburden % ≥ 350
Note: The physical properties of the refractory zone with a thickness less than
2.0mm are not required

Safety Performance
Flame retardant performance J Non - combustible and conductive static
properties K
The average flame duration of the three full-thickness (longitudinal) samples
was not more than 60S, and there was no reignition in any single result Flame
retardant performance with J conducting electrostatic performance: the surface
resistance is not more than 3 x 10 8 Ω

Baoxiang EP Nylon Conveyor Belt Features:
1. Nylon canvas as the skeleton, with the same structure as ordinary conveyor
belt and portable conveyor belt
2, with the belt body light, thin, high strength, fatigue resistance, impact
resistance, good groove, long service life and other characteristics.

Application: Suitable for conveying materials in medium and long distance,
high load and high speed.

nylon conveyor belt Varieties: according to the performance of the cover glue
can be divided into ordinary type, heat resistant type, fire resistant type,
cold resistant type, acid and alkali resistant type, oil resistant type.
(1) Core material: NN100, NN150, NN200, NN300, NN400
(2) Bandwidth: 100mm-1800mm
(3) Layer: 2-8 layers
(4) Covering glue: Working face: 1.5-8mm Non-working face: 0mm-4.5mm

Baoxiang is a multifunctional conveyor belt manufacturers that integrates
production line development, manufacturing, debugging and technical
transformation. Its products include conveyor belting, nylon conveyor belt,
etc.
