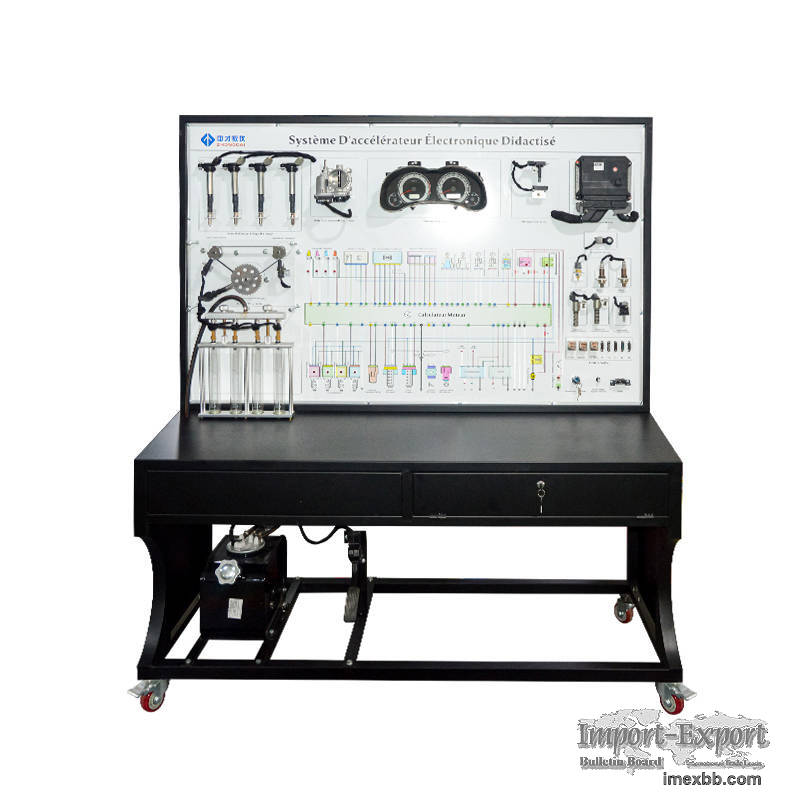

Engine electronic acceleration system training table

Product requirements
The equipment adopts the real parts of Toyota Corolla 1ZR-FE engine electronic
control system, which can fully demonstrate the composition structure and
working process of the engine electronic acceleration system.

The functional requirements
1. Real runnable engine electronic control system, simulate engine crankshaft
operation, can produce spark plug ignition, fuel pump work, injector injection
and other executive components work, fully demonstrate the composition of the
engine electronic control system structure and work process, electronic
throttle pedal can control the opening of the throttle.
2. The training table measurement panel is painted with colorful spray-painted
circuit diagrams, using 4mm thickness of high-strength aluminum plastic plate
spray-painted, with a large temperature difference, wear-resistant, moisture-
proof, anti-corrosion, not easy to deformation, long service life, bright
colors, not easy to fade, etc. Students can intuitively control the circuit
diagrams and physical, recognize and analyze the working principle of the
engine electronic control system.
3. The teaching board panel is installed with detection terminals, which can
directly detect the electrical signals of the engine electric control system
circuit components on the panel, such as resistance, voltage, current,
frequency signals, etc.
4. The teaching board panel is installed with a diagnostic socket, can be
connected to a special or general-purpose automotive decoder, the engine
electronic control system to read fault codes, clear fault codes and other
self-diagnostic functions of the engine electronic control system.
5. The training table is made of high-quality steel welding, with high
strength, corrosion resistance, long life, etc., after spraying process, the
appearance of beautiful and high-grade, the table with self-locking casters,
mobile and flexible, safe, reliable, durable.
6. The teaching board works with ordinary 220V AC power supply, which is
converted into 12V DC power supply by the internal circuit, without battery,
reducing the trouble of charging, and the 12V DC power supply has anti-short
circuit function.

Specifications
Size: 1600 * 800 * 1800mm (L * W * H)
Power supply: AC220V

Minimum Order: 1 sets
