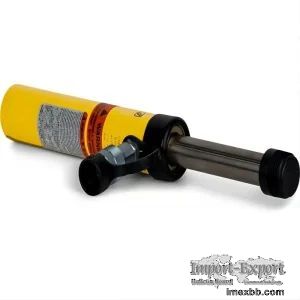

ENERPAC BRC-Series Pull Cylinders

BRC-Series Hydraulic Pull Cylinders include threads on the base, collar, and
plunger for fixing attachments such as chains, saddles, extension tubes, and
optional accessories. These single-acting cylinders feature a high-strength
return spring for rapid cylinder retraction.

Product Introduction
Model: BRC46 Series: BRC Product Line: Industrial Tools

BRC-Series Hydraulic Pull Cylinders include threads on the collar, plunger,
and base to affix optional attachments such as chains, saddles and extension
tubes. BRC-Series Hydraulic Pull Cylinders include threads on the collar,
plunger and base to affix optional attachments at ENERPAC supplier.

Pull cylinders in the BRC series are single-acting spring return. They
feature plunger blow-out protection and a hard chrome-plated plunger for
corrosion resistance. Typical applications include cable and bar tensioning
or other pulling applications.
Feature
High strength alloy steel construction
Plunger blow-out protection to prevent over-extension
Hard chrome-plated plunger for long life
CR400 coupler and dust cap included on all models
Baked enamel finish for increased corrosion resistance
Plunger wiper reduces contamination, extending cylinder life
Single-acting spring return

SPECIFICATIONS
Maximum Operating Pressure (bar)：700
Capacity Class (tonnage)：5
Maximum Cylinder Capacity Retract (kN)：51
Stroke (mm)：140
Collapsed Height A (mm)：301
Extended Height B (mm)：441
Return Type：Single-Acting, Spring Return
Plunger Type：Solid
Material：Steel
Cylinder Effective Area Retract (cm2)：7,3
Oil Capacity Retract (cm3)：101
Surface Treatment：Paint
Coupler：CR400 Coupler
Weight (kg)：4,5
