EN 13889 Shackle

EN 13889 shackle specifies the design, materials, testing, and marking
requirements for shackles used in lifting applications. It requires that the
shackles be manufactured from high-quality materials and meet certain
strength and durability criteria. The standard also specifies testing
procedures to ensure that the shackles can withstand the loads and forces
they are designed to carry.

When selecting an BS EN 13889 shackle, it is important to choose the right
size and working load limit for the specific task at hand to ensure safe and
effective use. It is also important to ensure that the shackle is marked
with the appropriate information, including the working load limit, the
manufacturer's name or trademark, and the EN 13889 standard designation.

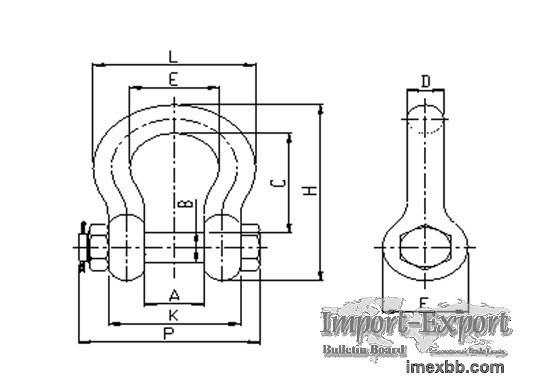

Specifications of EN 13889 Shackle
Size WLL Weight Dimensions Tolerance
(T) (Kg) A B C D E F H
K L P
3/16" 0.33 0.03 9.7 6.3 22.4 4.8 15.2 14.2 37.3
19.3 24.8 36 ±5%
1/4" 0.5 0.048 11.9 8 28.7 6.4 19.8 15.7 46.7
24.7 32.6 42 ±5%
5/16" 0.75 0.1 13.5 9.5 31 7.9 21.3 19 53
29.3 37.3 49 ±5%
3/8" 1 0.16 16.8 11.1 36.6 9.6 26.2 23.4 63
36 45.4 59.5 ±5%
7/16" 1.5 0.22 19 12.7 43 11.2 29.5 27 73.9
41.4 51.9 65 ±5%
1/2" 2 0.34 20.6 16 47 12.7 33 30 83.5
46 58.5 77.5 ±5%
5/8" 3.25 0.68 27 19 60 16 42 39 106
59 74 97 ±5%
3/4" 4.75 1.11 31.8 22.1 71 19 51 47 125
69.8 89 109 ±5%
7/8" 6.5 1.66 36.6 25.1 84 22 58 54 147
80.6 102 123 ±5%
1" 8.5 2.35 43 28.1 96 25 68 60 166
93 118 139 ±5%
1 1/8" 9.5 3.22 46 31.7 107 28.5 74 68.5
185.5 103 130 149 ±5%
1 1/4" 12 4.98 51.5 35.1 119 32 82 76 208
115.5 146 171 ±5%
1 3/8" 13.5 6.36 57 38 131 35 89 84 228
127 159 186 ±5%
1 1/2" 17 8.24 60.5 41.5 148 38 98 92 254
136.5 174 194 ±5%
1 3/4" 25 14.29 73 50.8 177 45 127 109 303
163 217 328 ±5%
2" 35 20.1 82.5 57.1 197 51 146 127 341
184.5 248 260 ±5%
2 1/4" 42.5 31.4 95 63 221 57 160 143 283
209 274 302 ±5%
2 1/2" 55 43.6 105 69.8 264 66.5 184 150 455
235 321 328 ±5%
3" 85 67 127 85 328 76 200 165 546
279 371 378 ±5%
3 1/2" 120 113 133 95 371 92 229 203 632
323 432 425 ±5%
4" 150 141 140 107 368 104 254 228
651.5 340 457 452 ±5%
Production Standard Meet EN13889 and US Federal Specification RR-C-271F,
Type IVA, Grade B
Production Process Drop Forging
Material Grade Carbon Steel for Shackle Body and Alloy Steel For Shackle
Pin
Heat Treatment Quenching and Tempering
Safety Factor 6:01
Finish Hot Dip Galv.
Temperature Range -20℃up to +200℃/td>
Fatigue properties Under 1.5 Times of working load limit,the Fatigue
test could reach over 20000 Cycles.
Low temperature Impact Test Charpy V-notch testing -20℃?with Min. 27J
Supply Certificate Mill Test Certificate According to EN 10204 3.1;
Under request, CCS/ABS/DNV third party
Inspection certificate can be supplied, but the cost would be extra
to buyer account.
