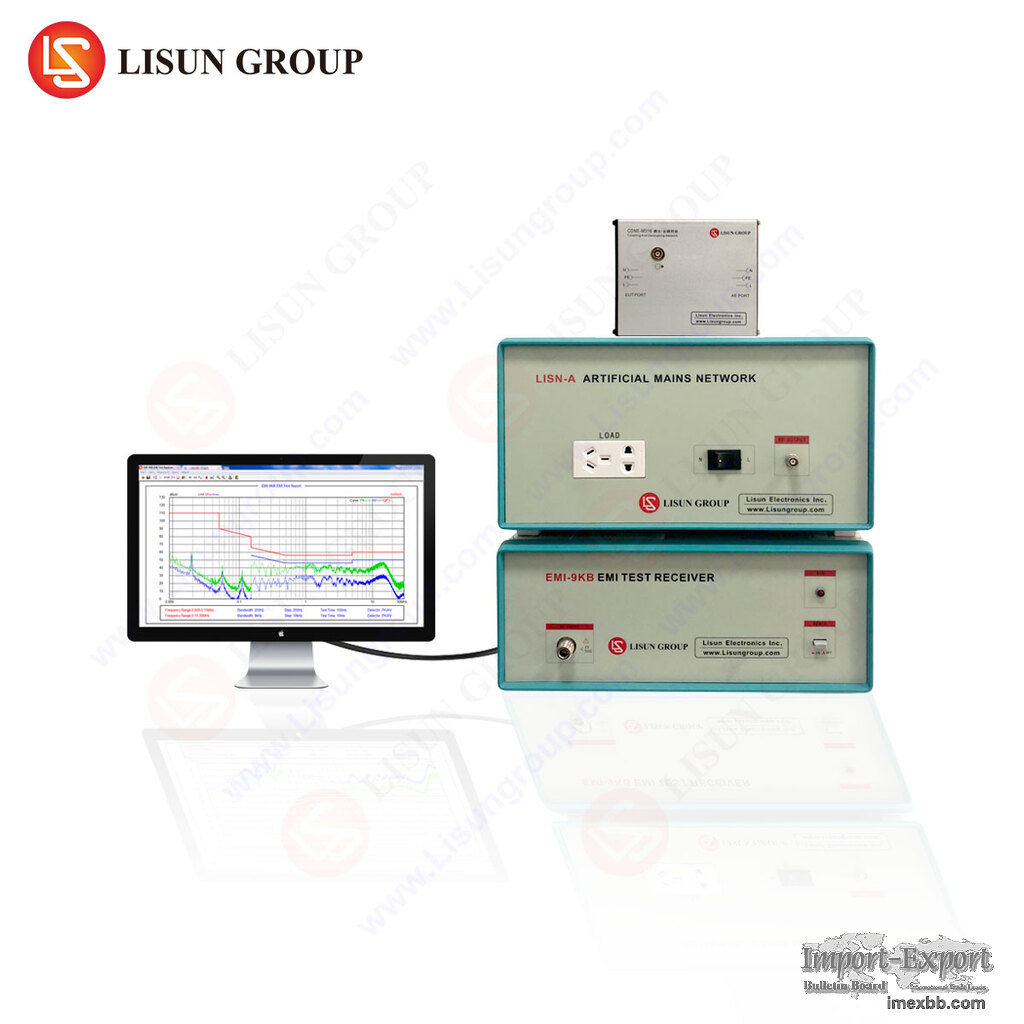

EMI Receiver System

EMI receiver system for EMI (Electromagnetic Interference) radiation conduction
or conducted emissions testing. The EMI-9KB EMI receiver is produced by the
full closure structure and strong electro-conductibility material, which has
high shielding effect. Due to the new technology for the EMI Test System, it
solved the instrument self-EMI problem. The test results are according to the
international format test report. The EMI Test System EMI-9KB fully meets
CISPR15:2018, CISPR16-1, GB17743, FCC, EN55015 and EN55022.

System Configurations:
• EMI-9KC Test System includes: EMI-9KC EMI Receiver built-in Attenuator (9K-
1GHz), LISN-A Artificial Network Power (16A with RS-232 communicate), CDNE-M316
Coupling/Decoupling Network for Emission, 3pcs Isolation Transformers and
cables.
• EMI-9KB Test System includes: EMI-9KB EMI Receiver (9K-300MHz), LISN-A
Artificial Network Power (5A), CDNE-M316 Coupling/Decoupling Network for
Emission, 3pcs Isolation Transformers, Attenuator and cables.
• EMI-9KA Test System includes: EMI-9KA EMI Receiver (9K-30MHz), LISN-A
Artificial Network Power (5A), 3pcs Isolation Transformers, Attenuator and
cables.

Option instruments to work with the EMI-9KC, EMI-9KB and EMI-9KA EMI receivers:
• LISUN LSP-500VARC/LSP-1KVARC Pure Sine Wave AC Power Source for EUT
• LISUN SDR-2000B Magnetic Shielding Cabinet for the EMI Receiver System
• LISUN VVLA-30M Three Loop Antenna to test 9k-30MHz Radiation
• LISUN AB-CLP Absorbing Clamp to test the Home Applications & motor tools

Specification:
• Detection frequency range: 9kHz~1GHz (EMI-9KC), 9kHz~300MHz (EMI-9KB),
9kHz~30MHz (EMI-9KA)
• Frequency stability: 1×10^-6
• Frequency resolution: (9kHz~150kHz) 30Hz; (150kHz~30MHz) 1kHz
• Test Tolerance: ±2 dB
• Measure and Detection method: PK, QP and AV
• Measure range from 20dBμV to 140dBμV
• Frequency scanning step length: 20Hz~2MHz
• Sweep bandwidth: 200Hz; 9kHz; 120kHz
• Connect PC via USB cable and software can run on Win7, Win8 and Win10, Win11

What is EMI receiver?
Electromagnetic Interference (EMI receiver) is electronic noise that interferes
with cable signals and reduces signal integrity. EMI Receiver is usually
generated by electromagnetic radiation sources such as motors and machines. EMI
Receiver (Electromagnetic Interference) has two types: conducted interference
and radiated interference. Conducted interference refers to the coupling
(interference) of signals on one electrical network to another electrical
network through a conductive medium. Radiated interference refers to the
interference source coupling (interference) its signal to another electrical
network through space.

How to test EMI Interference?
Electromagnetic disturbance that degrades the performance of electrical
equipment or electronic device, works abnormally or fails. It can be divided
into conducted interference test and radiated interference test. LISUN EMI-9KB
is an automatic EMI receiver system for EMI (Electromagnetic Interference)
radiation conduction or conducted emissions testing. It can do both conducted
interference test and radiated interference test.

What's the difference between EMI and EMS?
EMC (Electro Magnetic Compatibility) literally translates to "electromagnetic
compatibility". EMI (Electromagnetic Interference) "Electromagnetic
Interference" can be understood as attack type. There are two types of EMI,
conducted interference and radiated interference. EMS (Electro Magnetic
Susceptibility) literally translates to "electromagnetic sensitivity", which we
can understand as defensive type, which means the ease of performance
degradation due to electromagnetic energy.

Noted: According to latest CISPR15:2018 standard, you need to use CDNE-M316
(Coupling/Decoupling Network for Emission) to instead the CDN. The CDNE-M316
worked with EMI receiver system is equivalent to test radiated electromagnetic
disturbance of electric lighting appliance with frequency from 30M-300mHz

Minimum Order: 1 sets
