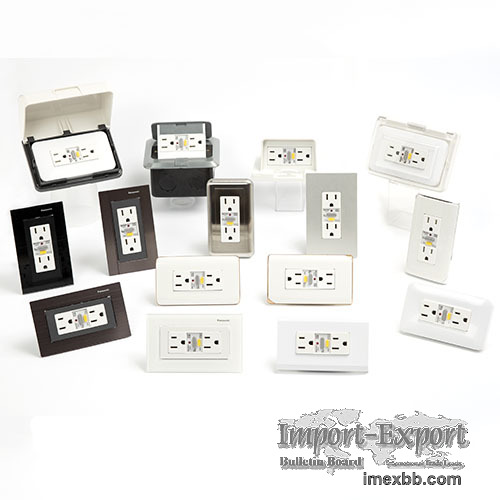

Embedded Leakage Protection Socket ASR

Leakage Protection Socket

Introducing the ATR series Wiring Socket with Leakage Protection. The ATR
series is designed to enhance electrical safety by incorporating leakage
protection into a convenient and reliable wiring socket. With a rated
current of 15A and a 2P+E configuration, this wiring socket is suitable for
various electrical applications, providing both power and protection.

Operating at a voltage of 125VAC, the ATR series ensures efficient
electrical connectivity with its 1Φ2W wiring configuration. The leakage
protection feature, with a sensitivity of 15mA, helps detect and address
potential electrical faults promptly. With a non-operation current set at
7.5mA, the socket prevents unnecessary tripping and ensures stability in
electrical systems.

The ATR series boasts a quick trip time of 0.1 seconds or less, enabling
rapid response to faults for enhanced safety. Additionally, it offers a
short-time current rating of 1A, ensuring reliable performance even during
short-duration electrical surges. The wiring socket is equipped with load
terminals compatible with 1.6 ~ 2.0mm conductors, ensuring secure and
efficient connections.

With its compact dimensions and a weight of 290g, the ATR series Wiring
Socket with Leakage Protection offers convenience and ease of installation.
Choose the ATR series for efficient and secure electrical connections,
providing peace of mind in any application.
