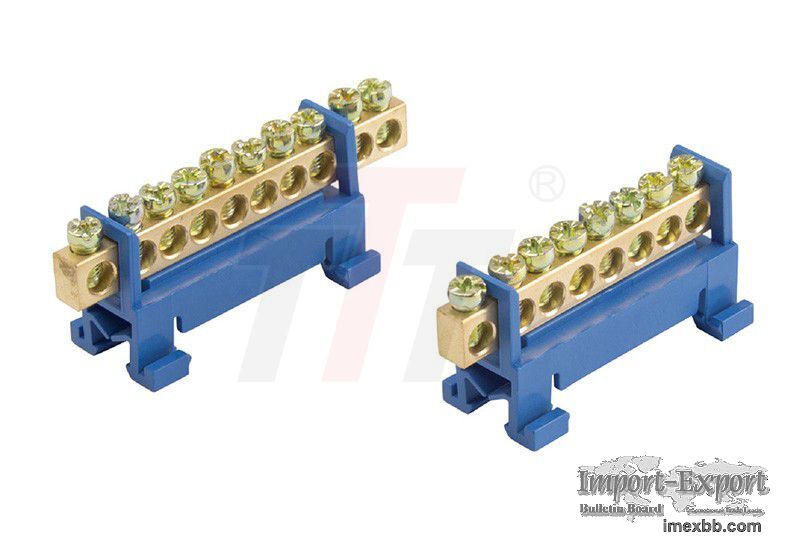

Electrical Terminal GK009-0609

Electrical Terminal GK009-0609
GK009 Terminal series use high quality brass raw material, has the
characteristics of high-current- carrying capacity, convenient-wiring
and durable quality.With acid-pickling treatment, products are not easily
oxidized.Due to Precisely manufacturing, it avoid the difficulty of
reinstallation after many times . From mold design to material processing, from
parts manufacturing to product assembly, we strictly control every
process,.High quality, large manufacturing capacity, trustworthy!

Pole No. Installation Dimension(mm) Outline Dimension(mm)
Sectioncross of Brass(mm2)
7 35*7.5 50*21 6*9
8 35*7.5 57*21 6*9
10 35*7.5 71.5*21 6*9
12 35*7.5 8435*21 6*9
13 35*7.5 91*21 6*9
15 35*7.5 104*21 6*9

Requirements to a Brass Screw Terminal body
1 The terminal body is manufactured from copper-zinc alloy
2 The terminal body is to be manufactured in parallelepipedal shape with
mutually perpendicular side planes. Deviation of perpendicularity is no less
than 0,1mm
3 The other sharp edges are to be blunted
4 The surface of holes for wire mounting is to be smooth without burrs, edge
fins and etc.
5  The form of thread into threaded openings is to be full without edge fins.
Every opening is to have no less than three full turns of a thread

Requirements to a terminal
1 The terminal is to be equipped with screws in the quantity equal to the
quantity of contact groups for the wire fixing
2 The screws are not to create troubles to next screws at the operation
3  Dimensions and completed set of terminals are to correspond to design
documents.
4 Operation temperature range could be from minus 40 to plus 50 °С.

Outgoing inspection
Visual Check:
-        Bring out the absence of outer damages, deep scratches, cracks,
chips, corrosion on the terminal and screws.
-        All screws are to be entirely tightened.
Temperature Rise Test :
- 5% of the batch of each standard size, but not less than 10 pcs.
Flame Retardant Test:
- 5% of the batch of each standard size, but not less than 10 pcs.

Certifications:
CE, can be of ROHS at your decision

FAQ
Why should we choose Gaoke products?
A: Gaoke is a leading manufacture in the field of terminal blocks, connecting
bars, din rail and copper accessories. We also provide customized solutions to
meet various demands.
How can we ensure product quality from Gaoke?
A: Gaoke believes QUALITY is critical. We committed ISO9001 from paper to real
work in each position in the company. From raw material supplier audits,
incoming material inspection to quality control and final packing Every step is
executed strictly to assure our product quality.
How long is the lead time?
A: Any order less than 500000 pieces can be completed in 30days.
