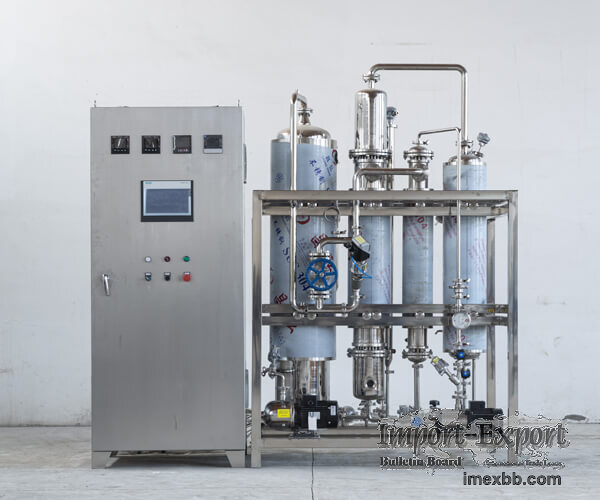

ELECTRIC CLEAN STEAM GENERATOR

Clean steam generator using electric energy as heating source is referred to as
electric heating clean steam generator. The steam generated after the purified
water is heated and evaporated by the electric heating clean steam generator,
through the centrifugal separation structure that can effectively remove the
water droplets and pyrogens entrained in the steam, the condensed water of the
clean steam produced meets the quality indicators of USP, EP, JP and ChP on
"water for injection".

This machine is suitable for production places without industrial steam, and is
an ideal sterilization equipment for hospitals, pharmaceutical, catering,
electronics, chemical and other industries.

Specification of Electric Clean Steam Generator
Specification Clean Steam Output(Kg/h) Purified Water Consumption(L/h)
Electricity Consumption(KW） Overall Dimension L×W×H(mm)
CSGE50 >50 65 48 1000x700x2000
CSGE100 >100 125 96 1200×900×2500
CSGE200 >200 250 192 1700×1000×2700
CSGE300 >300 375 288 1900×1100×2800

How Does Electric Clean Steam Generator Works?
Industrial steam is the most cost-effective heating source of clean steam
generator.

In places without industrial steam, electric heating can be selected if
conditions permit. Electric energy is converted into heat energy as an
alternative energy for industrial steam.

FEATURES OF ELECTRIC CLEAN STEAM GENERATOR
01.
Precise control of clean steam output pressure and temperature, fluctuation
within+5%.

02.
Clean steam pressure output range: 2-4Bar.

03.
Electric heating is adopted to convert electric energy into heat energy.


04.
PLC+HMI full-automatic control mode.

05.
Rising film/falling film, two working modes are optional.

06.
Comply with relevant requirements of WS310 supply room management specification

If you want to know more sorts of pharmaceutical purified water systems, please
leave us a message.
