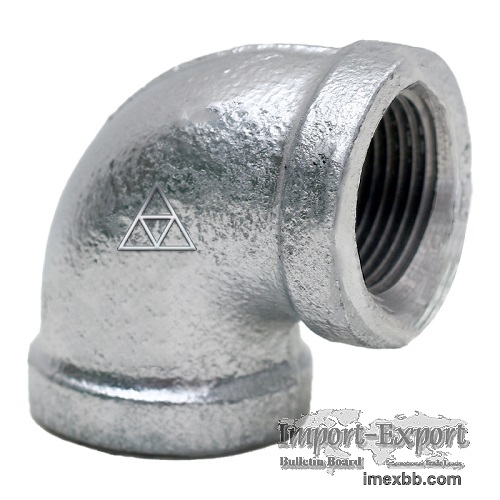

ELBOW 90° FEMALE/FEMALE BSP GALVANIZED

Type: Elbow
Size: 1/4”---6”
Threaded Standard: BS / NPT/DIN
Surface: Hot dipped galvanized, Toast galvanized, Black
Usage: Fire Protection (Fire Fighting), plumbing, infrastructure
construction, decoration, etc.
Tensile Strength: ≥33 KG/MM2
Elongation: ≥8%
Hydness: ＜HB163
Hydraulic Test Pressure: 25 KG/MM2
Working Pressure: 16 KG/MM2
Packing: Carton/ Bags /Pallet
Delivery: 45 days after the payment
Payment: TT, LC, etc.
Producing Process:
Melting the raw materials with sand core to form a primary casting, and then
put into the annealing furnace annealing. After reforming .flating .sand
blasting then picking the casting. the blank is galvanized, next making the
threa and cleaned with cutting liquid for packing, and finally loading.
Our products are mainly used in water systems, petrochemical systems, gas
systems, and water heating systems. At present, according to the product
design standards, our Malleable iron pipe fittings are divided into three
series: banded, beaded and BS with plain.
According to the different appearance treatment processes, they can be
divided into three series: Black, hot-dipped galvanized, and toast
galvanized. Therefore, for the same kind of products, we can provide
customers with different choices.
