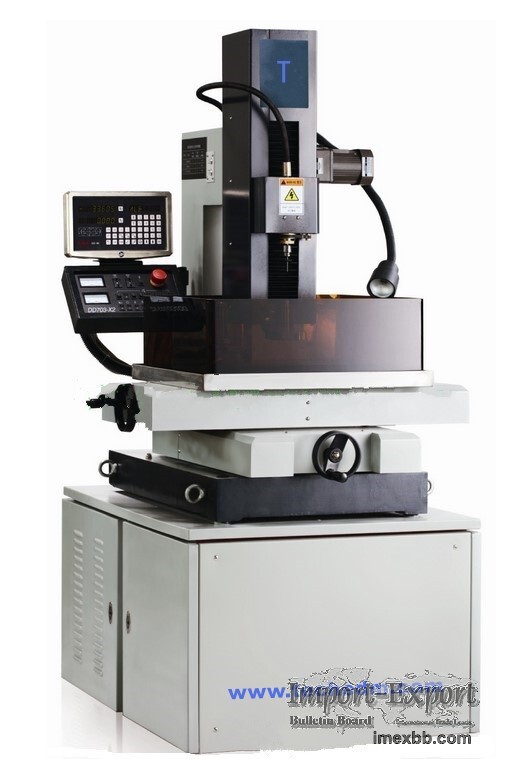

Economical Type Drilling EDM machines
I. Specification
Models
TD703-400
TD703-300
Worktable size(L×W)
320×400 mm
Table travel(X×Y)
300×400mm
200×300mm
Z axis travel
250+(300) mm
Max. drilling depth
0-400 mm
Max. drilling speed
30-60 mm/min
Max Pressure of Working Water
7Mpa
Max. working current
25 A
Electrode diameter
0.3-3.0 mm
Max Dia. & depth rate
1/300
Working solution
water
Working Tanker
25L
Power supply
380V /50 Hz
Max. Power consumption
2.5 kw
Machine dimension
1150×800×1750 mm
Machine weight
650 kg
Controller type
Automatic Z axis
Digital Display
X,Y axis
Function of setting depth
yes
II. The machine characteristics:
1. Make deep hole from diameter 0.3-3.0mmrapidly (Max drilling speed: 30-
60mm/min subject to the various materials and electrodes diameters)
2. Servo motor drive Z axis move rapidly
3. Z axis mounts on linear guide ways for high accuracy.
4. X, Y, Z axis adopt ball screw for moving with high stiffness
5. Special pump with high pressure for drilling
6. Auto depth control helps making blind holes easier
Minimum Order: 1 sets
)
Click to Enlarge
