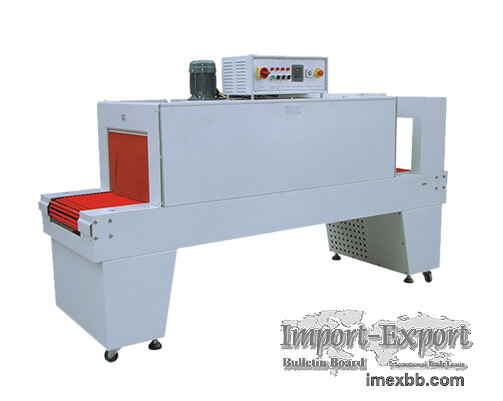

ECONOMICAL SHRINK TUNNEL PACKAGING MACHINE

GNS-5030 shrink tunnel packaging machine adopts the design of internal
circulation air duct to ensure the uniform temperature in the furnace;
Stainless steel heating tube, stable heating, and long service life; The
outside of the conveying roller is wrapped with high-temperature resistant
silicone hose, which is wear-resistant, high temperature resistant and long
service life. Imported high temperature resistant and heat insulation cord
fabric can greatly reduce heat loss, and can automatically cool down and shut
down without manual waiting for the shutdown. Contact us now for our shrink
wrap packaging machine!

ECONOMICAL heat tunnel shrink wrap machine TECHNICAL PARAMETERS
Machine Model GNS-5030 (Shrinkable Tunnel Machine)
Cavity Size L1300mm × W500mm × H300mm
Packaging Speed 20-40 bpm
Suitable Film POF or PE Film
Power Supply 3Ф220V/380V    50/60Hz
Power 13KW
Max Temperature 250℃
Net Weight 250kg
Dimension L1640 X W780 X H1560mm
Economical shrink wrap tunnel machine Electrical Configuration
No. Name QTY Brand
1 Draught Fan (0.37KW) 1 SHENGJIE
2 Conveying motor (120W) 1 VTV
3 Circuit Breaker (1P 2A) 1 ZHENGTAI
4 Temperature Controller 3 SHIYAN
5 Ac Contactor 2 ZHENGTAI
6 Intermediate Relay 1 OMRON, JAPAN
7 Thermal Relay 1 ZHENGTAI
8 Time Relay 1 VHHD
9 Leakage Switch 1 TIANDE

Economical shrink packing machine Features
01
The speed of the converyor belt and tunnel cavity temperature are adjustable;

02
The unique air regulating device is simple and convenient to operate, and the
air volume can be adjusted according to the product specification and packaging
speed;

03
Our economical shrink wrap tunnel machine possesses an advanced and unique
centralized heating mode;

04
Effectively accelerate the heating time and relatively reduce the power loss;

05
The hot air circulation channel adopts the return air type hot furnace liner
structure, and the hot air only runs in the furnace cavity to effectively
prevent heat loss.

As a leading packing machine factory in China, We provide l sealer shrink wrap
machine, shrink wrap tunnel for sale, side sealing machine and etc. For more
information, please feel free to contact us!

Minimum Order: 30 sets
