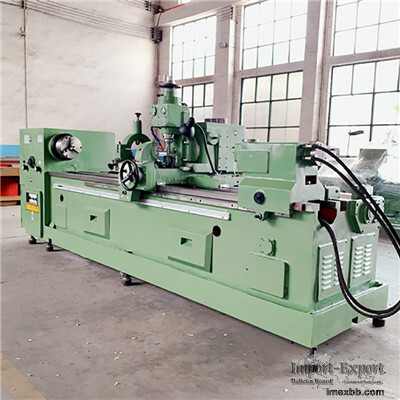

Economical GP6020 Horizontal Spline Milling Machine

Gear Cutting Machine Manufacturers

PRODUCT DESCRIPTION
Major Functions of the Machine Tool
GP6020 semi-automatic spline shaft milling machine is designed to process
straight-slot long spline shaft through hobbing. It can also be used to process
straight gear shaft.
Major Performance and Structural Features of the Machine Tool
This machine, by applying electrical hydraulic control, could realize  semi-
automatic one-time work cycle, automatically completing the following action:
Rapid approaching of milling head; vertical cutting of the slide; rapid return
of the milling head; rapid return of the slide
The machine has a mechanism that could eliminate the gap between feed screws
and nuts, and perform hydraulic control against tensioned workpiece at down
milling tailstock
1. Lathe Bed
The lathe bed is a rectangular box with sufficient rigidity. On the left side
of the bed locate the electrical box, the main motor and the fast motor. On the
right side of the bed locates the hydraulic control equipment. The cooling pump
motor and coolant tank are located in the middle of the hydraulic oil bath.
2. Lathe Head
The lathe head is equipped with the components of the index feed rapid
transmission mechanism. Open the rear door of the lathe head, there is the
exchange hanging wheel for milling cuter speed indexing and feeding. Its major
function is to transmit the indexing movement to workpiece supporting
workpiece, transmit the feeding movement to the feed screw and transmit the
milling cutter rotary movement to the feed rod.
