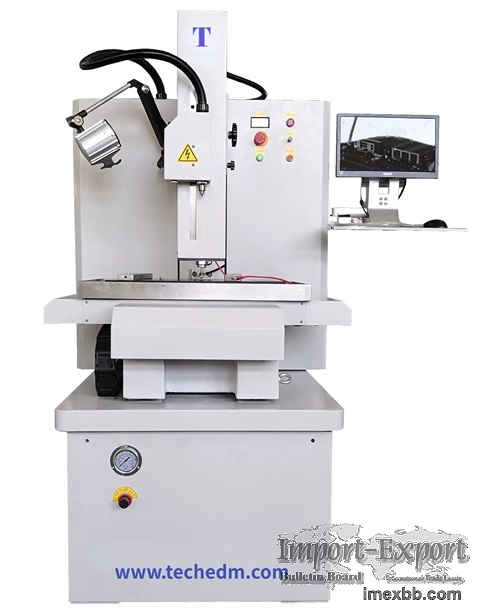

Economical CNC Small Hole Drilling EDM machine TE503

Economical CNC Small Hole Drilling EDM machine

TE503

I. Features:

1. This machine is mainly used for drilling parts which are difficult to
realize in plane group holes and various inclined planes, curved surfaces,
deep and small holes, etc., can drill steel, aluminum, copper, castings,
alloys, titanium alloys, conductive ceramics and other conductive materials
of the blind hole and through-hole processing.



2.Basic structure: Includes the machine body, the numerical control pulse
power control cabinet, the working fluid system and so on.

3. The machine body: Includes the machine bed, column, X-axis, Y-axis, Z-
axis, w-axis (manual).



4. CNC Pulse Power Supply Control Cabinet: Includes Industrial Control
Computer, CNC system, liquid crystal display, servo drive, machine tool
appliances, high-efficiency amplifier, electric pulse power, etc.



II. The machine characteristics:

1. All-in-one design, semi-enclosed stainless steel water tank and the
back cover board.



2. With the machine tool integrated design of the electronic control
system, with a minimum of connectors to achieve the most stable and reliable
results.



3. Precision Ball screw and high-precision linear guideways are used to
ensure the permanent and reliable operation of the machine tool.



4. The X-Y axis is driven by AC servo motor; the speed of moving axis is fast
and the positioning precision is high.



5. Multi-function electronic hand box, to realize a series of functions such
as shifting axis, locating, machining control, etc.

6. 4-axis linkage control (extended B-C axis).



7. Windows interface operating system man-machine dialogue, easy to use.



8. Using industrial control computer, running fast, stable and reliable.



9. Use self-developed CONTRA CNC EDM drilling special software (support for
the follow-up software upgrade services).

10. Flexible and diverse programming methods, support direct conversion of
CAD, MDI list programming, etc.



11. Support simple G code instructions, greatly facilitate the use of
operators, efficiency increased by 2 times.



12.The system can save the machining program to record the process parameters
of each hole and can be used for quality analysis.



13. Multiple data transfer modes (USB LAN RS232).



14. 15' HD LCD liquid crystal display screen.



15. Guide holder made in Taiwan, long-lasting accuracy and easy adjustment

16. Precision cemented carbide seal rotating head, with good sealing
performance and rotating accuracy.

17. High pressure pump, low noise, stable and reliable pressure, especially
suitable for small electrode processing.



III. Model TE 503 Speciation


Specification

Item No:

TE503

Worktable size(L×W)

700*400 mm

Table travel(X×Y)

500*400mm

Z axis travel

380 mm

W axis travel

300mm

Max distance between work table and guider

370mm

Max. drilling speed

30-60mm/min

Working liquid pressure

0-11 Mpa

Max. working current

30 A

Electrode diameter

0.25-3.0 mm

Max workpiece weight

200kg

Max X Y axis moving speed

≥2000mm/min

X Y Z driving

AC motors for X/Y axis, DC servo motor for Z axis

Move the minimum unit

0.001mm

Axis moving control mode

Electric hand box

Input/output interface

USB LAN RS-232

Working solution

Clean water

Control mode

Industrial computer control card

Screen display

15″LCD touch screen

Program

MDI CAD G code

Positioning accuracy

0.025

Repeat positioning accuracy

0.02

Power supply

380V /50 Hz

Max. Power consumption

3.5 kw

Weight

800Kg

Machine dimension

1200*1500*2200mm



< , br>IV. Main parts list

NO.

Name

Model

Br , and

Origin

1

Servo motor

MS1H4-40B30CB

Huichuan

, China

2

Driver

IS620PS2R8I

Huichuan

China

3

Linear guide

LEG20C

Hiwin

Taiwan
,
4

Ball screw

FN2005-447

Haosen

China ,

5

Industry computer

DPC-Z3-W(ST-NA10Z)

Siteming ,

China

6

Moving control card

ADT8940

ZWX

China

7

LCD display

163V5LSB2

PHILIPS

Hol , land


8

Electronic hand box

HTD-B70-PL7-MOS-M

HT

Chin , a

9

Air switch

DZ47-60-C25

Chint

Chin , a

10

Contactor

LC1D09\12\T25< , br>
Schneider

France

11

Mi , niature relay

G5V-2

Omron

Japan

12

Switching power

NES-75-24

Mingwei

Taiwa , n

13

PLC module

FX3GA-24MR

Mitsubishi

Japan

14

High power COMS tube

IRFP250

IR

USA

15

High power 3 phase rectifier

75A

SANREX

Japan

16

Electronic Hand Box



ZG

China

17

Rotating head



ZG

China

18

Screw rod bearing



NSK

Japan

19

Casting< , br>
HT250 second tempering

GS

China

20

, Machine tool sheet

Metal spraying

GS

China

Minimum Order: 2 sets
