Product Description

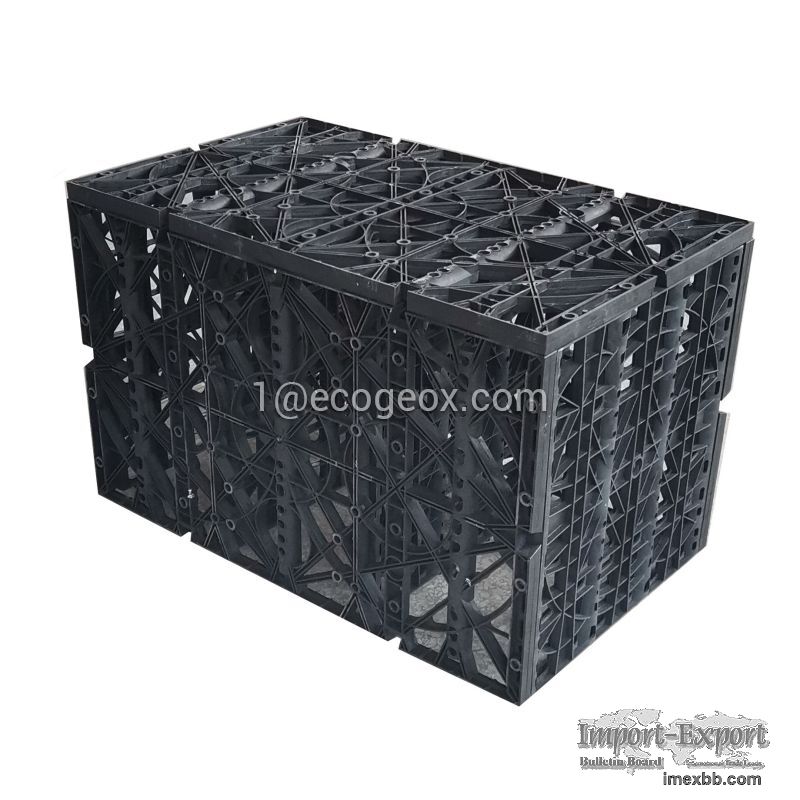

The EcoGeoX-Tank System provides the most efficient and versatile method of
underground stormwater storage available today. It's an ideal way to convert
stormwater ponds to useable space, and EcoGeoX-Tank is a more efficient, space
saving alternative for underground stormwater detention, infiltration, and
recycling systems.
Assembly of Stormwater Storage Module Unit
Always install upright for Maximum strength and for Warranty. Evenly distribute
and connect the small panels into large panel. Next, working from one end to
the other, attach a second large plate on the opposite side of the first. Once
the top and bottom large plates are attached, complete the sides of the tank
module.
Multiple Stormwater Storage Modules Assembly
To build a DOUBLE storm storage module unit (or even larger), follow the
directions below, starting at "Assembly Instructions:" using the top of the
existing unit as the large plate. Completed tank modules should be staged as
close to the installation area as possibie.
Maintenance of Stormwater Storage Modules
Installing the Maintenance System
To install the PCV Pipe, remove the center small plate and cut the top large
plate between the remalning interior small plates. Before inserting the port
into the Tank, install an anti-scour plate in the bottom of the Tank to prevent
disturbance of the base materials. Maintenance ports should be capped at the
surface.In landscaped areas, this may be accomplished with a simple pipe cap or
plasticvalve box. In paved areas, metal Tidsare moreappropriate.
