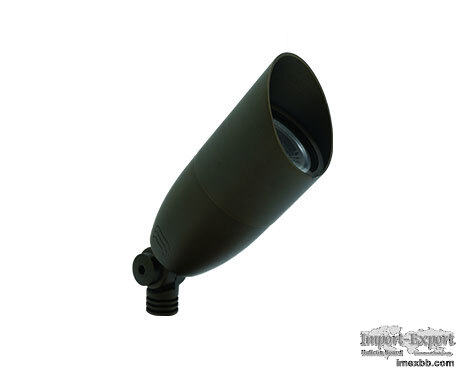

Eagle Spot Light

As one of garden floor spotlights, AE01 eagle spot light can be used as
lighting up and down.

Dimming of garden ground spotlights is available between 3W and 12W.

The Angle of the eagle spot light is a kind of new garden lights and the
outdoor garden lighting fixtures can be changed by changing the lens.

The source and power supply module of the eagle spot light can be replaced,
especially its green garden spotlights.

The eagle spot lights have a wide range of applications,such as house
spotlights outdoor, ground spotlight outdoor and green outdoor spotlights.

There are many types of the eagle spot lights for you to choose, including LED
spot flood lights, 12 volt LED spot and flood lights, directional spot light
fixture and modular spotlight.

Specifications of Eagle Spot Light
Fixture: Spot Light

Mode: AE01

Beam Spread: 15˚ 25˚ 40˚ 60˚

Color Temp.: 2700K/3000K

Type: Low voltage LED

Operating Voltage: 9V - 16V AC/DC

Wire Lead: 10’ 18AWG

Weight: 5.5LBS

Wattage: 3W(min) - 12W(max)

Lumen Output: 240LM - 900LM

Eagle Spot Light
Structure of Eagle Spot Light
The raw copper is used for production.

The product has four layers of sealing, dustproof and waterproof, which can
prevent insects from entering. It can be used for both up and downlighting.

Use high transparency high borosilicate glass.

All electronic drivers comply with US and Canadian electrical codes.

Eagle Spot Light
Safety Instructions of Eagle Spot Lights
1. Turn the power OFF or unplug the fixture and allow it to cool before
replacing the lamp.
2. Lamp gets HOT quickly. Contact only switch/plug when turning on.
3. Do not touch hot lens, guard, or fixture housing until it has cooled.
4. Keep the lamp away from combustibles.
5. The inner module is very hot, do not touch it until it cools down.
6. Do not operate the fixture fitting with a missing or damaged shield.
7. For outdoor use only.
8. Make sure the power is turned OFF before installing or servicing this
fixture.

Installation Instruction of Eagle Spot Lights
Disconnect the transformer from the main supply.

Remove the shield from the retaining housing.

Assemble the internal mold into the lamp and connect it with a connector (if
required).

Install the cover and rotate the cover on the housing to fix it on the fixture
housing to make sure the leak hole is in the middle and down.

Connect the cable to the main line through the ground plug.

OL is a professional brass landscape lighting manufacturer, we provide outdoor
brass light fixtures, outdoor lighting, outdoor lighting fixture, brass
landscape lighting and etc. Want to know more? Contact us now.

Minimum Order: 5000 pieces
