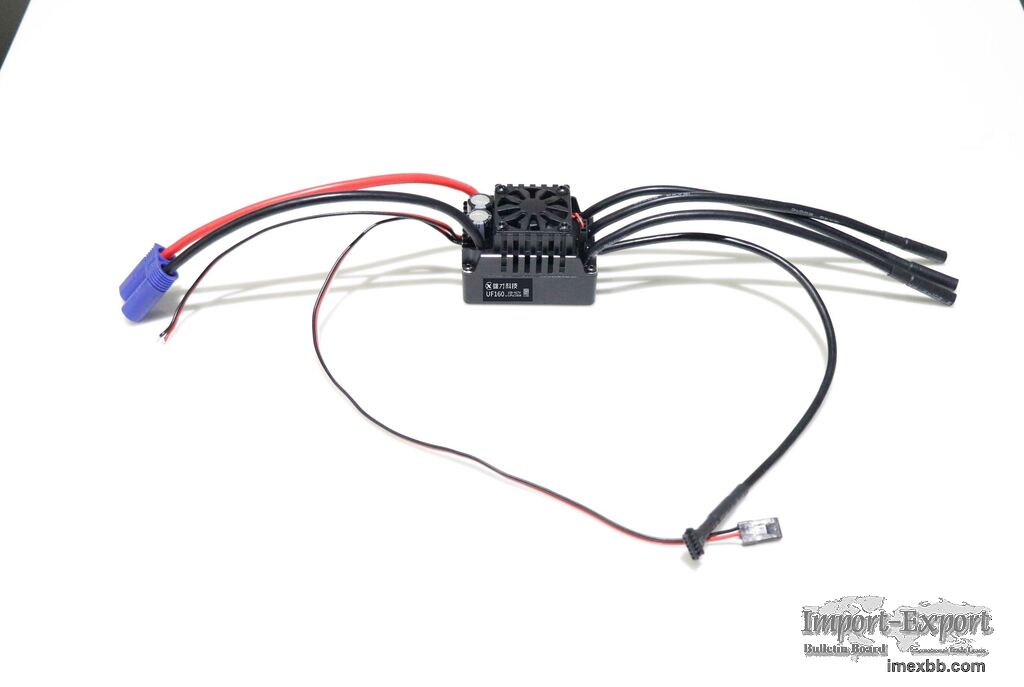

E8 Electronic Speed Controller (ESC)-Enjoy Power and Reliability

E8 Electronic Speed Controller-Let You Enjoy Power and Reliability

1. Current: Continuous current 160A, peak 320A
2. Cell: 3-6s Li-Po
3. Motor: Sensored or sensorless brushless motor
4. Speed: <240,000RPM
5. BEC: 6.0V, 7.4V, 8.4V, continuous current 6A, peak 15A
6. Bluetooth: Parameter programming, firmware upgrade
7. Acceleration: 12 levels of acceleration, quick start like super car
8. Dimension: 59.8*48.2*35.9mm

E8 electronic speed controller (ESC) is the third one of the six we released
for RC cars and trucks. This brushless system is packed with an integration of
compact hardware, advanced software and waterproof design that will promote
handling experience dramatically.

Combination of forged Al heatsink, case integrates and a 40mm fan, the E8 ESC
will maximize airflow throughout the system, taking thermal performance to next
level, allowing ESC working at its optimal.

The E8 electronic speed controller can handle 3-6s Li-Po batteries with
continuous current 160A, adjustable BEC 6.0v-8.4v, continuous current 6A, so it
can deal with anything that motor pours out. Thanks to our designers’ software
advancement works, this ESC matches most of motors on market, you don’t need
to worry about the compatibility. You are able to do any stunts you dream of in
racing or show.

We have designed perfect protections secure your favorite RC car while endowing
the ESC potent power handling. Protections includes low voltage, throttle loss,
abnormal braking, over temperature etc. Especially, we have applied active
free-wheeling and wave-by-wave current limiting on this product, which is only
used on high-end product.

The active free-wheeling with precise identification can provide microsecond
level track and response time, reducing MOS generating heat effectively to keep
ESC cool for ultra-high performance. The wave-by-wave current limiting will
limit each wave of current to secure motor and drivetrain, prolonging lifespan
of power system.

This electronic speed controller is full featured and easy to use. Most of
parameters can be programmed on mobile app via Bluetooth, such running mode,
BEC output, brake force, acceleration, turbo timing and more. Especially, we
designed 12 levels of acceleration, you can set it according to your skill,
also you can use it for training. You can feel the quick start like the super
car.

We have been engaging in BLDC brushless electronic speed controller since 2011,
we provide a full service from design, analysis, test to supply. You just enjoy
the handling experience of RC cars or trucks, we take care of the rest.

Contact us now and have a try, you will feel the ultimate handling experience.

Minimum Order: 100 pieces
