E8 160ASpeed Controller Comes With Performance and Protection

XC Speed Controller Provides Not Only Performance, But Also Protection

RC cars and trucks are crucial assets to RC hobby enthusiasts, we should
provide full protection when they are powering their beloved RC cars or trucks
through our speed controller (ESC).

We can see that there are lots of speed controller manufacturers always shown
the power, current or number of battery cells. Actually, most of manufacturers
can make speed controllers with high power, high voltage and heavy current. Are
these characteristics the most important? No doubt, these attributes are
important, but many electronic speed controller suppliers and manufacturers
neglected a fundamental element-safety. Maybe most of RC enthusiasts had
experienced great loss due to power beyond control.

E8 electronic speed controller characteristics:
1. Current: Continuous current 160A, peak 320A
2. Cells: 3-6s Li-Po batteries
3. Motor: BLDC Sensored or sensorless brushless motor, 240,000RPM
4. BEC: 6.0V, 7.4V, 8.4V, continuous current 6A, peak 15A
5. Bluetooth: Parameter programming, firmware upgrade
6. Mobile App: for quick programming, no need of additional modules
7. Acceleration: 12 levels of acceleration, quick start like super car
8. Dimension: 59.8*48.2*35.9mm
9. Compatible with most of motors for RC hobbies

It’s essential to reducing damage possibility of RC model and ensure safety of
players through full protection, for beginners or senior enthusiasts. That’s a
thought deeply rooted in the mind of XC’s team.

XC Technology XC202-E8 electronic speed controller, for instance, is a powerful
ESC designed for 1:8 scale RC cars or trucks. This ESC can handle 6S LiPo
batteries, with up to 160A continuous current, it allows you to do any stunts
like launch control, side standing, somersault or whatever.

With 12 levels of acceleration and 10 level PWM initial speed, XC202-E8 can let
your RC cars or trucks run on rear wheels, run by rear wheels, even show back
flip.

Built-in 8.4V BEC adapts to high voltage servo, with 10A continuous current,
achieving real-time response to servo.

These attributes can push your RC car to limits, is that all? No, what we need
more is safety, for both RC cars or trucks and personal safety.

Anti-spark design. It will reduce spark when connecting plugs of batteries and
ESCs, improving service life of plugs and protecting batteries and ESCs.

IP67 rating. Potting with epoxy for waterproof and dustproof allow you to drive
RC cars or trucks at any weather conditions and terrains.

Smart thermal dissipation. The 40mm fan is controlled intelligently by ESC.
When temperature is above 55 Celsius degrees, fan will be turned on. When
temperature drops to 50 Celsius degrees, fan will be turned off. Comparing to
other electronic speed controllers (ESCs), the fan starts running when ESC is
on. XC ESC reduces energy consumption for longer runtime.

Active freewheeling. The precision active freewheeling can reduce MOS
generating heat and avoid excessive current pulse.
Current limiting in each single PWM cycle. This is a very important protection
technique, which can protect power switch elements and motor when there is a
sudden heavy current or has a short-circuited output.
It can a) reduce impact of pulse current on motor; b) reduce impact on switch
MOS; c) ESC will detect and control current 20,000 times per second in each PWM
cycle, no need to shut down ESC.

Traditionally, when over current occurs, it will be controlled after 10 times
process, the power will be decreased or ESC shut down. Comparing to this mode,
XC electronic speed controller provides better user experience.

XC E-series speed controllers (ESCs) have been used in RC cars and trucks
modification, like Losi 5T converting from gas to electric. XC electronic speed
controllers (ESCs) will redefine the R/C limits and is able to put your RC cars
or trucks in extreme.

Minimum Order: 30 sets

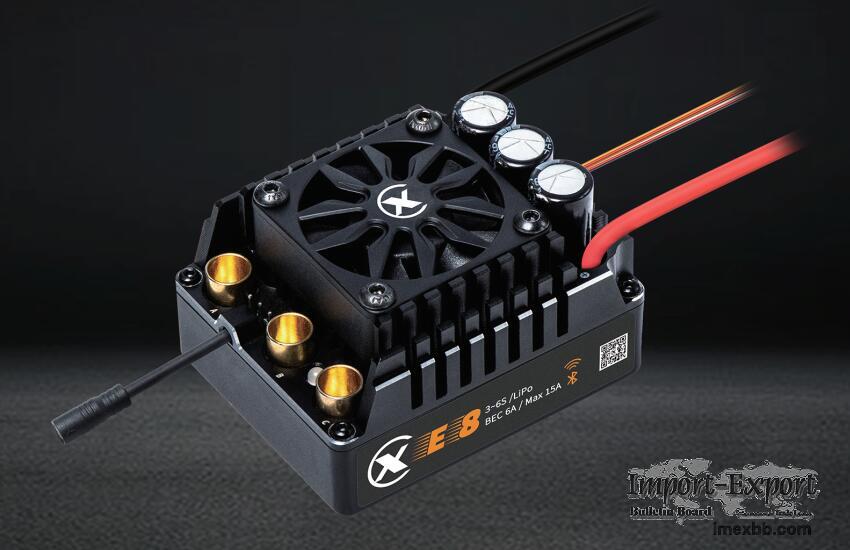

Click to Enlarge
