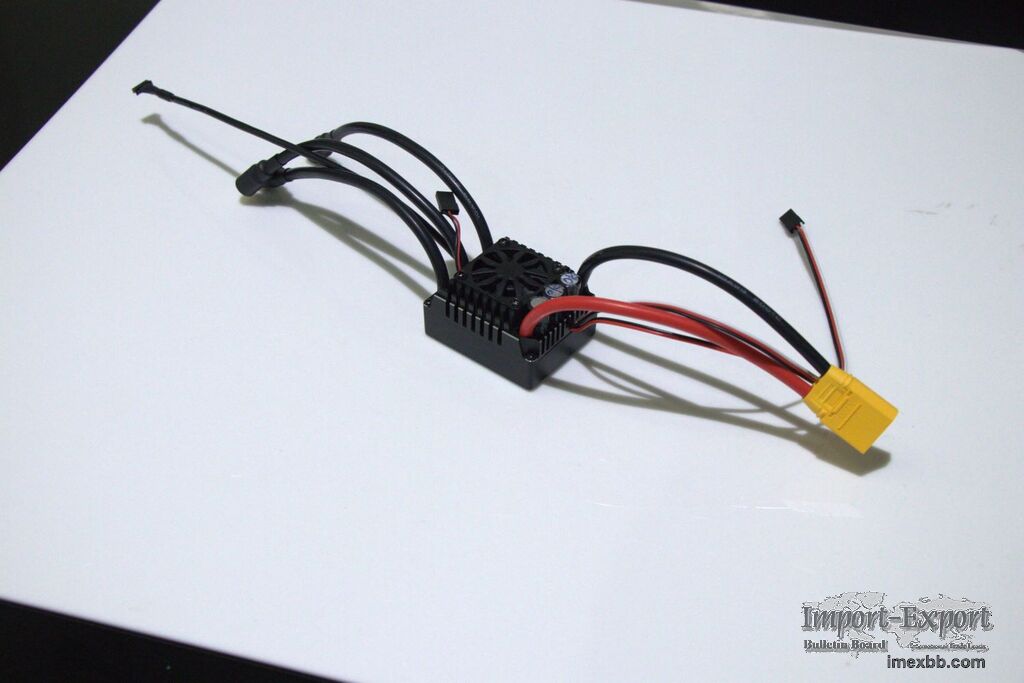

E10 140A Electronic Speed Controller Is One of Most Reliable ESCs

Engaging in electronic speed controller for automotive fuel & water pumps,
electrical tools for 13 years, we are one of the few manufacturers that focus
on electronic speed controller only.

1. Current: Continuous current 140A, peak 300A
2. Output: 2-4s Li-Po
3. Motor: Sensored or sensorless brushless motor
4. Speed: <240,000RPM
5. BEC: 6.0V, 7.4V, continuous current 5A, peak 10A
6. Bluetooth: Parameter setting, firmware upgrade
7. Dimension: 52.8*9.8*35.3mm

We dedicate to designing reliable and powerful electronic speed controller for
Hobby products such as RC cars, boats, planes in addition to manufacturing
controllers for automotive fuel pump & water pumps, electric tools and drones.
Besides the potent E3-the one which was designed for ultimate experience of a
1:8th even 1:6th RC cars, we designed several mild ones. Here I introduce E10
electronic speed controller to you.

Even E10 is the mildest one in this product family, with power of 2-4S Li-Po
batteries, 140A continuous current, it will generate fierce power. Like the
super car, the launch control start will get you excited. There are 12 grade
acceleration from 1% to 12%, you can adjust it according to your skill.
This electronic speed controller is applicable to both sensored or sensorless
brushless motor, we provide bespoke service. What we do is help you achieve
your ideas. It supports max motor speed of 240,000RPM. In another word, you
must ensure that the motor speed does not exceed 240,000RPM to avoid any damage
to both ESC and motor.

BEC output is optional, 6.0V or 7.4V, the current is 5A continuous and 10A
peak. Which is much more proper? It’s up to your servo specification, for body
safety and device safety, please read it carefully.

An excellent thermal management is essential to a powerful electronic system.
With the integration of fan and forged Al heatsink, E10 electronic speed
controller maximizes airflow throughout the system, cooling critical component
for high-performance and longer runtime. The fan is controlled by ESC according
to internal temperature. For instance, fan will be turn on when temperature is
above 55 degree, and it will be turn off if the temperature is below 50 degree.
All configurations can be done on mobile app via Bluetooth, running mode,
acceleration, braking force, turbo timing, initial PWM etc. It is ideal for
training, you can familiarize function and features step by step.

For safety, we have designed a series of protection measures including low
voltage, over voltage, over temperature, throttle loss, abnormal braking, short
circuit protection and so on. You don’t need to worry about quality and
reliability. You just feel drivability, handling and enjoy the racing, we take
care of the rest.

Our products have been verified in automotive industries and drones, adopting
by clients such as NISSAN, Xpeng, Feilong Auto Component (FLACC), Shenhai
Electrical Appliance, ACHR, Risun, Joinhands, Keshen, Wuhan Cummins, FAW Group,
Jingyi Group, Linrui Auto Electrical Appliance, Unicent, and more. Parts are
certified by CSIPER25, ISO11452-2, ISO10605, ISO16750, ISO7637. We provide a
full service from design, analysis, testing to supply, you don’t need to worry
about the quality and reliability.

Contact us and have a try. If you have any special concept or requirement, we
will help you achieve your ideas.

Minimum Order: 300 pieces
