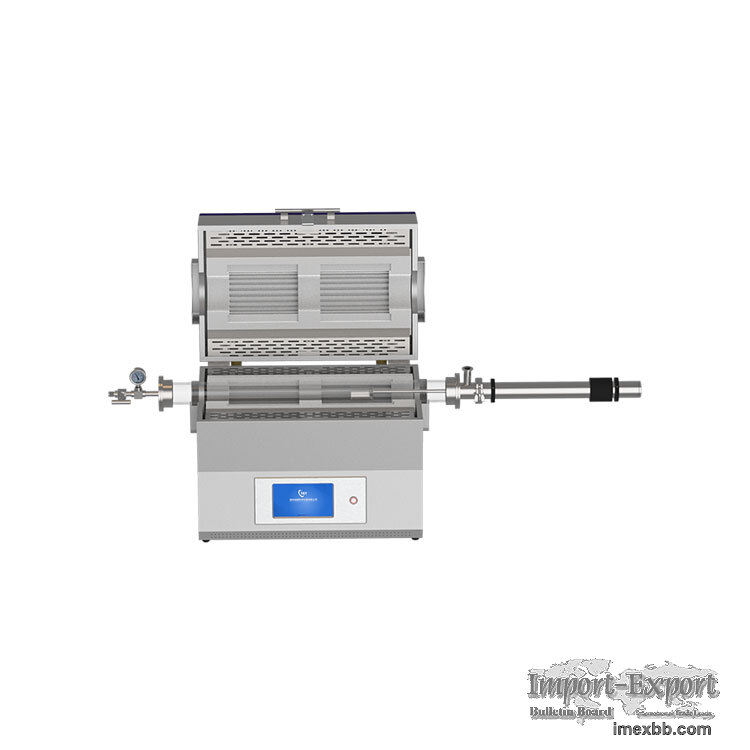

dual temperature zone tube furnace with magnetic push rod

CY-O1200-60II IT-MB Double temperature tube furnace with magnetic push rod

The dual-temperature zone tube furnace is equipped with a magnetic push rod, which
has an exquisite structure and high reliability, and can perform displacement
operation on the sample in the tube while keeping the furnace tube vacuum tight.
Combined with separate temperature control in dual temperature zones, it can
realize a variety of heat treatment processes for users and is an ideal equipment
for material research and material processing.

Technical parameter
Supply voltage: AC220V, 50Hz
Maximum power: 4KW
Heating rate: Maximum 20℃/min, recommended ≤10℃/min
Operating temperature: Maximum temperature≤1200℃; continuous working
temperature≤1150℃
Heating temperature zone: Dual temperature zone 200mm+200mm
Furnace tube parameters: Length 1000mm O.D 60mm I.D 57mm
Temperature control: PID temperature control accuracy ±1℃
Thermocouple: K type thermocouple
Temperature control method:
Separate temperature control in dual temperature zones
AI-PID 30-segment process curve, can store multiple
With overheating and broken couple protection
Furnace material: High purity alumina furnace
Vacuum interface: KF16
Air inlet: 6.35 Card sleeve connector
Magnetic putter: Moveable length 500mm
Can shift samples in two temperature zones To meet customer's heat treatment
process,Using magnetic coupling connection,Can ensure the vacuum of the furnace
tube while pushing the sample
Dimensions: 1300mm X 420mm X 550mm

Minimum Order: 1 sets
