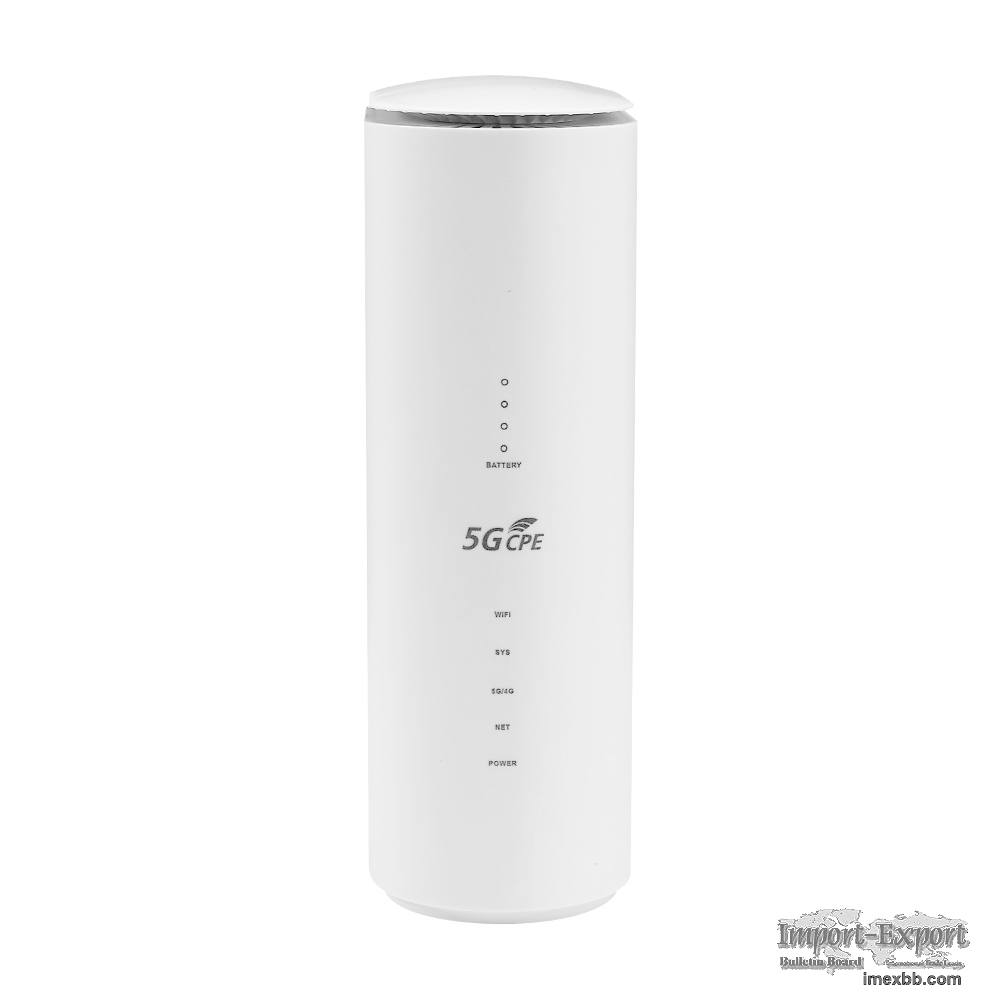

Dual sim card NSA SA 2.4g&5.8g wifi 6 voice sim router 5g

Description Dual sim card NSA SA 2.4g&5.8g wifi 6 voice sim router 5g
Item no. HY8500
CPU chipset UNISOC UDX710/RG500U-EA/Dual-core ARM Cortex-A55 processor 1.35GHz
Wifi chipset Qualcomm 2064/FC06E
SIM slot 2FF or 4FF(DUAL SIM OPTIONAL)
Lan port 1*1000Mbps
Voice 1*RJ11 port(optional)
Button Reset/WPS/Battery level/Power
External antenna TS9 connector(optional)
Battery 7.4V(2000mAh X 2 or 5000mAh X 2) (optional)
Type C Firmware upgrade
Power Input voltage: 12V/1.5A
WiFi 2.4G&5G
5G Frequency 5G NR NSA: n1/3/7/38/40/41/66/77/78
5G NR SA: n1/3/5/7/8/20/28/38/40/41/66/77/78
4G Frequency
LTE-FDD B1/2/3/4/5/7/8/20/28/66
LTE-TDD B38/ 40/ 41
3G Frequency WCDMA B1/B2/B5/B8
3GPP Release 5G NR (3GPP Release 15)
5G Modulation DL 256QAM, UL 256QAM
4G Modulation DL QPSK、16QAM、64QAM、256QAM, UL QPSK、16QAM、64QAM
3G Modulation QPSK、16QAM、64QAM
Max. Transmitter
Power 5G NR n1/n3/n5/n7/n8/n20/n38/n40/n41/n66：Class 3 (23 dBm ±2 dB)
5G NR n28：Class 3 (23 dBm +2/-2.5 dB)
5G NR n77/n78：Class 3 (23 dBm +2/-3 dB)
5G NR n41/n78 HPUE：Class 2 (26 dBm +2/-3 dB)
LTE B1/B2/B3/B4/B5/B7/B8/B20/B38/B40/B41/B66：Class 3 (23 dBm±2.7 dB)
LTE B28：Class 3 (23 dBm +2.7/-3.2 dB)
LTE B41 HPUE：Class 2 (26 dBm ±2.7 dB)
WCDMA B1/B2/B5/B8：Class 3 (24 dBm +1/-3 dB)
5G NR Feature DL 4 × 4 MIMO：n1/ 3/ 7/ 38/ 40/ 41/ 66/ 77/ 78
UL 2 × 2 MIMO：n38/ 40/ 41/ 77/78
NSA ：MAX DL 2.6 Gbps，MAX UL 575 Mbps
SA ：MAX DL 2 Gbps，MAX UL 1 Gbps
LTE Feature Max：CA：DL 3CC，UL 2CC
FDD：DL Cat 12，UL Cat 13
TDD：DL Cat 12，UL Cat 13
Support 1.4/3/5/10/15/20 MHz bandwidth
DL support 2 × 2 MIMO
Max： DL 600 Mbps UL 150 Mbps
UMTS Feature Support DC-HSDPA HSDPA HSUPA HSPA+ WCDMA
Max：DL 42.2 Mbps UL 11Mbps
WIFI antenna Internal antenna
Modulation DBPSK/DQPSK/CCK/BPSK/QPSK/QAM
WiFi protocol IEEE 802.11 a/b/g/n/ac/ax
Antenna
Frequency 2.4 GHz WLAN: 2.400–2.4835 GHz
5 GHz WLAN: 5.150–5.850 GHz
Bandwidth 2.4G 20MHz/40MHz 5G 20MHz/40MHz/80MHz
Rate 1774.5Mbps data rate (2×2 + 2×2 11ax DBS)
2.4G Max. transmitter power 802.11b/1Mbps 21dbm
802.11g/54Mbps 19dbm
802.11n/HT40 MCS7 18dbm
802.11ax/HE40 MCS11 17dbm
5G Max. transmitter power 802.11a/54Mbps 18dbm
802.11n/HT40 MCS7 18dbm
802.11ac/VHT80 MCS9 17dbm
802.11ax/HE80 MCS11 16.5dbm
Wizard Support
Device info CPU Usaage/Memory Usage/Online time/Runtime/UUID/software version
Network info IMEI/IMSI/ICCID/RSRP/RSRQ/RSSI/SINR/PCID/EARFCN/Fr , equency
DHCP server Support
DHCP client list Support
APN Setting Support
Network Lock Support
Band Lock Support
PCI Lock Support
PIN Management Support
DHCP Client Support
WIFI mac filter White list and Black list
WIFI Broadcast Support
Hidden WIFI signal Support
WPS Support
WIFI Security Type WPA-PSK/WPA2-PSK
SMS Support
NTP Support
Reboot Schedule Support
Flow setting Support
Sim card Switch Support
system log Support
system upgrade Local upgrade/FOTA
Reboot and Reset Support
Signal bar Support (WEBUI)
Operating Environment Operating Temperature:Normal:0°C to +45°C;
Operating Temperature:-20° C to +70° C
Operating Humidity:5%~ 95%
Storage Humidity:5%~ 95%
Dimension Device: 20.9*12.5*7cm
10pcs/ctn size: 40x21.5x46.5cm
G.W.: 8.0Kg/ctn

Minimum Order: 1 pieces
