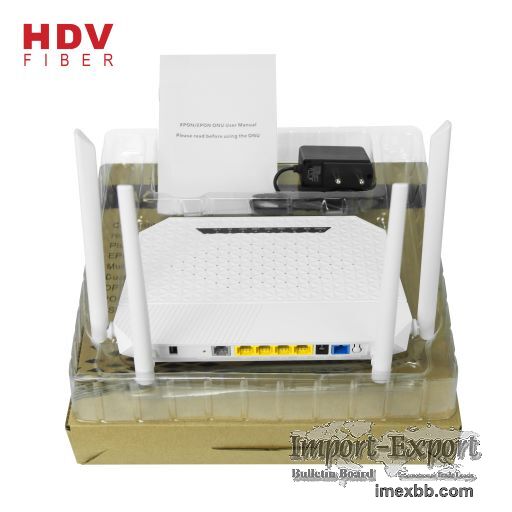

Dual Band 2.4G&5G FTTH 4GE+4WIFI+1POTS+1USB 5dBi 4 Antennas AC XPON GPON ON

1. Overview

* HUR4001XR is designed as HGU (Home Gateway Unit) in different FTTH
solutions.The carrier-class FTTH application provides data and video
service access .
* HUR4001XR is based on mature and stable, cost-effective XPON technology.
It could switch automatically into EPON mode or GPON mode when access to
the EPON OLT and GPON OLT.
* HUR4001XR adopts high reliability, easy management, configuration
flexibility and good quality of service guarantees to
meet the technical performance of EPON Standard of China Telecom CTC3.0 and
GPON Standard of ITU-TG.984.X
2. Functional Feature
* Support EPON/GPON mode and switch mode automatically
* Support Route mode for PPPoE/DHCP/Static IP and Bridge mode
* Support IPv4 and IPv6
* Support 4G&5.8G WIFI and Multiple SSID
* Support SIP Proctol for Voip Service
* Support LAN IP and DHCP Server configuration
* Support Port Mapping and Loop-Detect
* Support Firewall function and ACL function
* Support IGMP Snooping/Proxy multicast feature
* Support TR069 remote configuration and maintenance
* Specialized design for system breakdown prevention to maintain stable
system
3. Hardware Specification
Technical item
Details
PON Interface
1 GPON BoB（Class B+/Class C+）
Receiving sensitivity: ≤-27dBm/≤-29dBm
Transmitting optical power: +0.5~+5dBm/+2~+7dBm
Transmission distance: 20KM
Wavelength: TX: 1310nm, RX: 1490nm
Optical Interface: SC/UPC Connector
Design Scheme
RTL9607C+RTL8192FR(2.4G)+RTL8812ER(5G)+S , i32192 BOB(RTL8290B)
Chip Spec: CPU 950MHz,DDR2 128MB
Flash: SPI NAND Flash 128MB
LAN Interface: 4 x 10/100/1000Mbps auto adaptive Ethernet interfaces.
Full/Half, RJ45 connector
Wireless
Compliant with IEEE802.11b/g/n,ac
2.4G Operating frequency:2.400-2.4835GHz
5.8G Operating frequency:5.150-5.825GHz
2.4G 2*2 MIMO, rate up to 300Mbps
5.8G 2*2 MIMO ,rate up to 867Mbps
4 external antennas 5dBi
Support Multiple SSID
POTS interface: FXS, RJ11 connector
Support: G.711/G.723/G.726/G.729 codec
Support: T.30/T.38/G.711 Fax mode, DTMF Relay
Line testing according to GR-909
USB: Standard USB2.0
LED 9 LED, For Status of PWR、LOS、PON、LAN1~LAN4、2.4G、5.8G
Push- , Button 2 ,For Function of Reset and WPS
Operating Condition
Temperature: 0℃~+50℃
Humidity: 10%～90%（non-condensing）
Storing Condition
Temperature: -30℃~+60℃
Humidity: 10%~90%（non-condensing）
Power Supply: DC 12V/1A
Power Consumption: ≤6W
Dimension: 248mm×158mm×192mm（L×W×H）
Net Weight: 0.3Kg
Storing Condition
Temperature: -30℃~+60℃

Minimum Order: 1 pieces
