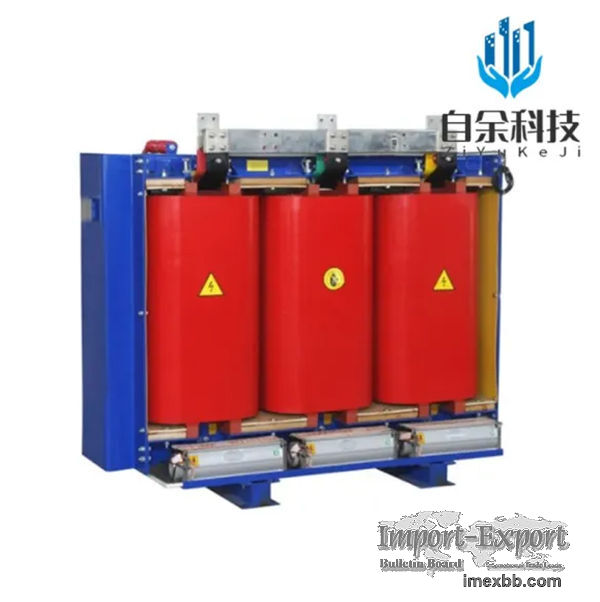

Dry Type Three Phase Power Distribution Transformer

This product conforms to the national standard GB10941-2013 (IEC 60076) power
transformer and GB/T6451-2015 indoor dry transformer technical parameters and
requirements. Epoxy resin cast transformer is a kind of solid insulated
encapsulated winding power transformer. Epoxy resin dry -type transformer
adopts epoxy resin as insulation material. The high and low voltage winding
adopts copper strip (foil), casting epoxy resin vacuum curing, forming high
strength FRP body. Insulation grades are F and h. Epoxy resin dry type
transformer has the characteristics of good electrical performance, strong
lightning impact resistance, strong short-circuit resistance, smaller volume
and lighter weight than others as well as other characteristics and so on. The
temperature display controller can be installed to display and control the
working temperature of the transformer winding to ensure the normal service
life of the transformer.
Provide customization service, customize parameters and models according to
requirements.
Industrial Power Transformer characteristics
1. Oil free，pollution free, flame retardant, self-extinguishing, fireproof.
2. Low loss, high efficiency, low noise. Under forced air cooling conditions,
it can run for a long time at 125% rated load and is equipped with an
intelligent temperature controller. It has the functions of fault alarm,
overtemperature alarm, overtemperature trip, black door and so on. Through
RS485 serial interface and computer connection, to achieve centralized
monitoring.
3. Small partial discharge (less than 30pc), high reliability, can ensure long-
term safe operation, life up to 30 years.
4. Temperature variation endurance, high mechanical strength, strong resistance
to sudden short circuit.
5. Good moisture-proof performance, it can operate normally under 100%
humidity, and can be put into operation without drying after shutdown.
6. There is no need for a separate transformer room, iron core maintenance or
load-bearing beams, saving civil land and occupying no oil, so it will not
produce toxic gases to pollute the environment. No sump pit or other ancillary
buildings, reduce construction costs, easy installation, no commissioning,
almost no maintenance; No need to change or check the oil, low operating and
maintenance costs.
