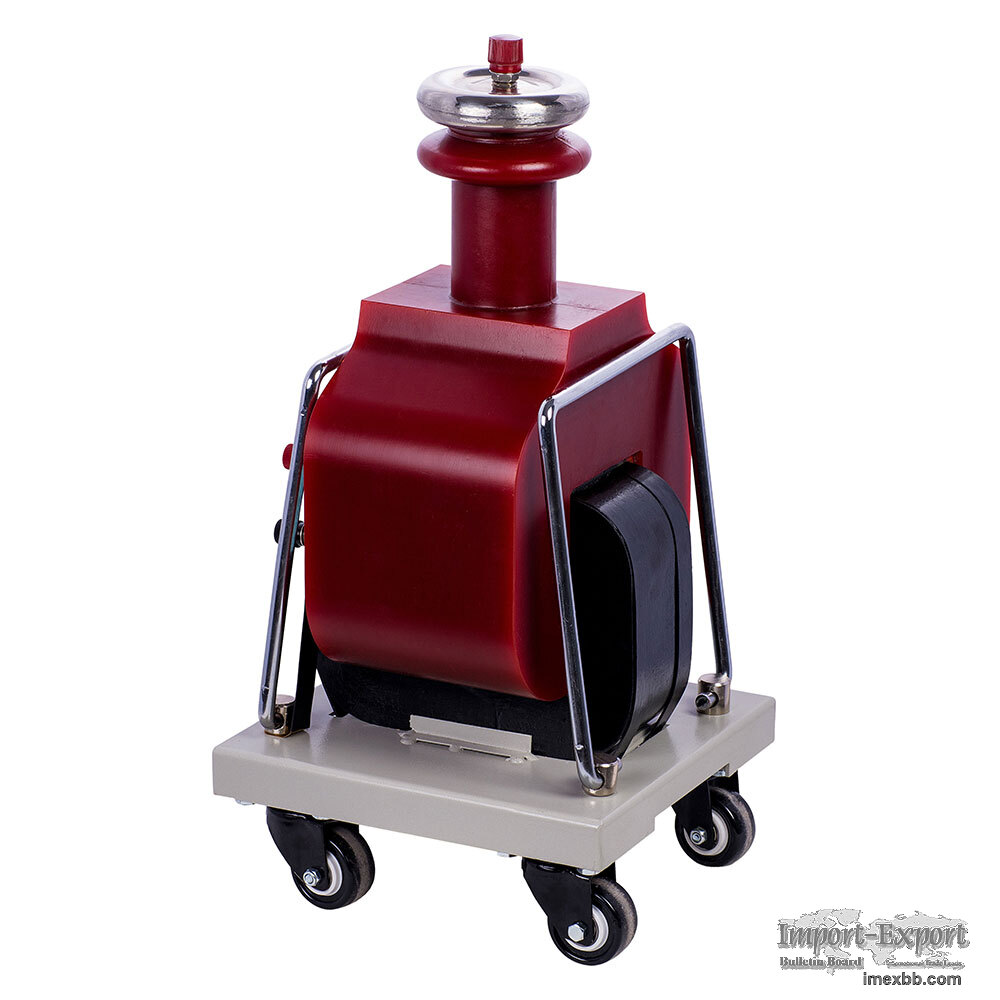

Dry Type AC/DC Hipot Tester/ 10KVA Testing Transformer

This series of testing transformer uses advanced production equipment, adopts
the new technology of coil winding epoxy vacuum casting and CD type iron
core. Compared with similar oil-immersed transformers, it significantly
reduces the weight and volume, improves the insulation strength and humidity
resistance, and effectively weakens the magnetic flux leakage and greatly
strengthens the transformer's ability to withstand the impact of the test
short-circuit current.

This series of testing transformer can also make DC high voltage test by
using a matched high-voltage silicon stack.

This series of testing transformer have features of light weight, small
volume, beautiful appearance, stable performance, convenient usage and
carrying, especially suitable for site operation, are new generation high
voltage testing transformer used for AC and DC in China.

This series of testing transformer are applicable to power system and all
power users to detect on site the insulating performance test of all
electrical equipment, high voltage power sources of all appliance's voltage
system or equipment with DC high voltage small current.

TECHNICAL TARGET:
1. Impedance voltage: 4.5%-8%
2. Output voltage waveform: sine wave
3. Surface temperature rise: <55℃
4. No-load loss consumption: 0.2% - 0.35%
5. Allowable continuous operation time: 2 hours
6. Interrupted operation time: continuous

Minimum Order: 1 sets
