Drug Coated PTA Balloon Catheter

OVERVIEW

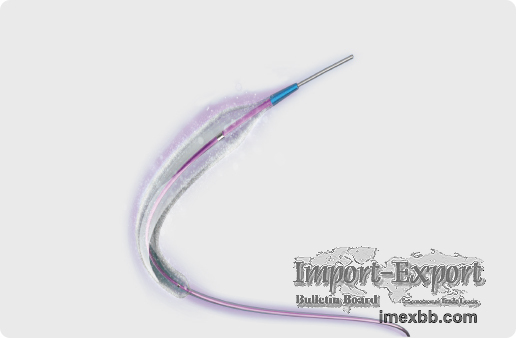

Drug Coated PTA Balloon Catheter
ENSURE EFFECTIVE DRUG DELIVERY OF A SAFE THERAPEUTIC DOSAGE
The Drug-Coated PTA Balloon Catheter, a versatile and effective PAD treatment
option, features unique PTA Coating Technology and is available on the 0.014”,
0.018” and 0.035” balloon catheter platforms.

Product Features
Drug Coated PTA Balloon Catheters
A carrrier or an excipient is not always necessary

Coating Technology
01
The DCB drug dose of paclitaxel is 3μg/mm².

02
UltraFree™ Coating Technology effectively controls paclitaxel crystallization
process, resulting in a uniform and stable microcrystal drug coating.

03
Particle size distribution test results show that 75% of the particles related
are in 5-10μm range.

04
The integrated UltraFree™ coating prevents the early drug flaking during the
procedure preparation and the device tracking.

05
UltraFree™ Coating quickly disintegrates into microcrystalline particles at the
lesion site and allows rapid drug transfer to the arterial wall.

06
The effective drug tissue concentration at the lesion site lasts for more than
90 days.

More options with the clinically proven platforms

The DCB is based upon the PTA balloons platform and features
Low entry profile and excellent crossability
Advanced pushability
Long balloon lengths up to 220mm

ORDER INFORMATION
ZENFLuxion-35
Catheter Type Over-The-Wire(OTW)
Guidewire 0.035”
Catheter Tip Flexible, short and cone-shaped
Balloon Material Nylon
Fold Three / six folds
Coating Paclitaxel coating
Marker 2
Balloon Size Diameter:4.0~12.0mm; Length:20~220mm
Shaft 4~8F
Usable Length 110cm and 130cm

INDICATIONS
Drug Coated PTA Balloon Catheter
The ZENFLUXION™ Drug-coated PTA Balloon Catheters are indicated for
Percutaneous Transluminal Angioplasty (PTA) of stenosis or occlusion lesions in
iliac, femoral or popliteal arteries.

Zylox-Tonbridge Medical highlights the corporate social responsibility and
mission, and boosts the innovation and technological development by taking
active part in the combination of scientific innovation with medical
engineering. Besides, we keep launching the professional teaching activities to
the practitioners in the medical field, regulating the employees and partners
to observe the high-level compliance policies and codes of ethics, performing
the corporate social responsibilities, and abiding by the commitment to the
shareholders and all other stakeholders.
