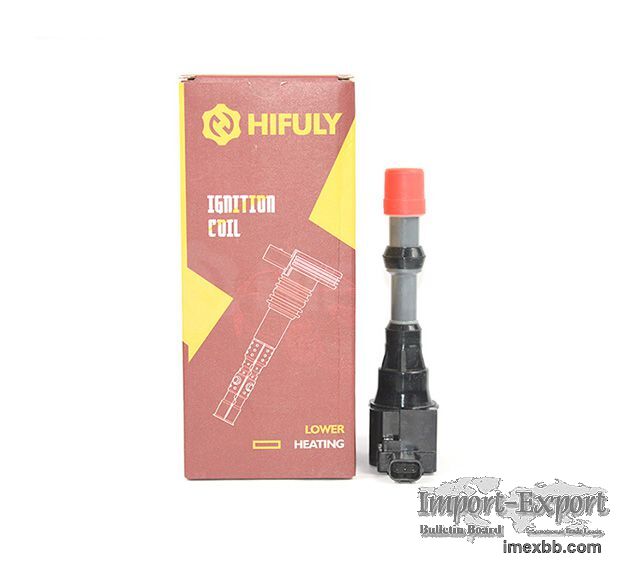

DQ9010 Honda Ignition Coil 30520-PWA-003

DQ9010 Honda Ignition Coil 30520-PWA-003 Japanese Car Ignition Coils
automotive ignition coil supplier

What is an ignition coil?
The ignition coil is like a transformer that increases the 12V voltage of the
battery to a high voltage of tens of thousands of volts; at the same time, it
is an energy storage device to ensure that the spark plug continues sparking.
The ignition coil is made using the principle of electromagnetic mutual
induction.
Classification of ignition coils:
1、Classified according to internal filling:
Oil ignition coil, Dry ignition coil
2、Classified according to the shape structure:
Pen ignition coil, Fake pen ignition coil, Multi-head ignition coil
3、Classified by product performance
Open magnetic circuit ignition coil, Closed magnetic circuit ignition coil
Honda Ignition Coil advantages:
1、Warranty is 24 months, more than other factory of 12 months.
2、Each product has passed 100% 38-40KV open circuit test, which is higher than
the other factory of 35KV open circuit test standard.
3、The product quality inspection is strict, and it has gone through 6 quality
inspection procedures.
4、Complete ignition coil product models, we develop
Japanese/Korean/European/American/domestic car series models.
5、Develop original low heating technical, for enhance reliability, reduce
temperature rise, and increase product service life.

Auto Ignition System Products specifications:
The MOQ one piece
Warranty time two years
The lead time 4 days
OE No. 30520-PWA-003
Car type fit for Honda


Characteristic Mark Condition:f =50Hz,VCC=13.5V，TA=25±3℃
Specified value Unit
Operating Voltage VCC Signal amplitude 5V, pulse
width 3.4mS f =50Hz      13.5 V
signal frequency  f Temperature 20±10℃ 50 Hz
Input Current IC Signal amplitude 5V, pulse width 3.4mS f =50Hz
6.8-7.8 A
Primary resistance RP Temperature 20±10℃ 0.6～0.7 Ω
Secondary resistance RS Temperature 20±10℃ 8.0～9.0 KΩ
Primary inductance LP Frequency 1KHZ 2.8～3.4 mH
Secondary inductance LS Frequency 1KHZ 15.0～18.0 H
Secondary voltage VOUT  Signal amplitude 5V, pulse
width3.4mS f =50Hz ≥32 KV

Ignition wires are generally applied in Auto ignition system.

About Us
Mr. Zhou yao, Chairman of Hunan Hifuly Technology Co., Ltd., graduated from
Shanghai Tongji university in 1991, then worked for Changsha automobile
electric factory on auto ignition coil R&D.
He worked out china the first Dry ignition coil of OEMs suporting for Beijing
Cherokee in 1994s. He had devoted his whole life to the cause of ignition coil.
In 2008, Mr. Zhou Yao founded Hunan Hifuly Technology Co., Ltd, now our company
was the largest sales manufacturer of ignition coil brand in china after
market.
Hifuly company has nearly 200 employees and two ignition coil produce lines,
the annual capacity is 5 millions pieces.
Hifuly adhere to the principle of quality first, and passed TS16949 certificate
in 2013.
We use the high quality materials: The copper wire from Germany ELEKTRISOLA;
The epoxy from Japan; The plastic parts made by Germany BASF.
Hifuly insists on china most strictest ignition coil factory inspection, all
products must be checked by 38KV open load test.
Hifuly provide best service to our customers, help our customers get more
benefit easily without any risk. Many customer's sales were keeping increase
steady because cooperate with Hifuly.

FAQ about HIFULY
Q1：Are you ignition coil manufacturer or the trade?
We are ignition coil manufacturer.
Q2: How about the warranty?
Two years.
Q3: How about the lead time?
Four days.
Q4: What's your MOQ?
One piece.
Q5: How about the shipping way?
We can send door to door by plane or by sea.
Q6: How about the package?
We can design package as your require.

We are a professional spark plugs manufacturer, we can supply high quality and
complete variety Japanese Car, Korean Car, European Car, American Car and
Chinese car spark plugs.
If you are interested in our products, please click here and we will provide
you with the best quality products and the best service!

https://www.hifulyignitionsystem.c , om/japanese-car-ignition-coils/honda-
ignition- , coil.html

Minimum Order: 1 pieces
