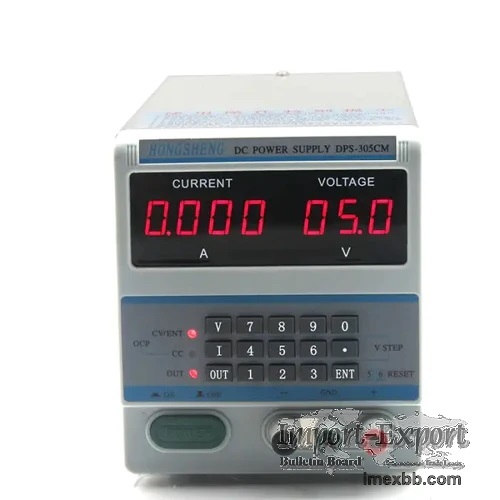

DPS-305 LED Display Regulated Adjustable DC Power Supply

DPS series digital input adjustable DC power supply, LED Display Mobile
phone repair power test regulated power supply

Due to the voltage value is a digital keyboard input, shorten the voltage
setting time, completely overcome the traditional potentiometer adjustment
poor contact caused by voltage instability phenomenon. The internal power
supply containing electronic switch, can conveniently open the output load.

Input voltage: 110V/220V ±10%50/60Hz

Output power: DPS-305BF 0 to 30V 0-5A
DPS-305BM 0 to 30V 0-5A

Option 1: DPS-305BM: BM: Four digit display，accuracy ±0.001A (1mA)

Option 2: DPS-305BF added function: BF: Five digit display，
accuracy±0.0001A (0.1mA)

Power sound alarm function
Mobile phone signal test
More curren digit display

Option 3: DPS-305CF added function: Five digit display, Newer version more
than DPS-305BF, added Memory storage and password Memory lock function.

added DC power Cable: 44 pcs power convert cables

Value added function: a quick call 10 groups of voltage and current data and
storing the user required 10 groups of voltage and current data, password
lock keyboard, prevent misuse or vandalism operation.

Specification :
1: rated working conditions and dimensions

Power supply voltage 220V + 10%50 / 60Hz ( 110V need to order )
Working conditions: 0-40 temperature relative humidity 80%
Storage temperature: - 10-70 C 70% relative humidity
Dimensions: 265 x 128 x 150mm ( D * W * H )

2: Regulated state parameters

The voltage output from 0 to 30V can be continuously adjusted ( to
distinguish the value of 0.1V )
The precision of output voltage: + 0.1V
Voltage stability: < 0.01%+3mv
Load stability: < 0.01%+3mv
Recovery time: 100uS
Ripple noise voltage: < 1mVRMS ( 5Hz-1MHz )
Temperature coefficient: < 300PPM / C

3: A constant current state parameters

Constant current value: 305 CM 5A Ma constant current maximum 500 mA
303CM 3A Ma constant current maximum 500 mA
Constant current output current from 0 to the nominal value of continuous
adjustable ( to distinguish the value of 0.01A )
Constant current output accuracy: + 0.01A ( MA constant current precision: +
1mA)
The current stability of the < 0.1%+3mA
Load stability < 0.1%+3mA
Ripple noise current < 3mARMS

4: Current and voltage display accuracy

Voltage display accuracy: + 0.1V ( constant current state )
Current display accuracy: + 0.01A ( constant pressure )
Ma current display accuracy: + 1mA ( constant pressure )

5: Storage capacity

Storage and call ten current, voltage data ( 305 / CM )
Initial has been deposited in the data: 1 keys ( 3V ) 2 ( 5V ) button button
3 ( 9V ) 4 ( 12V ) 5 button button button ( 13.8V ) 6 ( 15V ) 7 ( 18V ) 8
button button button ( 19V ) 9 ( 20V ) 0 ( 24V ) current key value is 5A,
the user can arbitrarily settings change the desired voltage and current.

6: A voltage step range

10V / 1V / 0.1V lifting voltage step
Three panel features
In 1, the front panel
Current display window
Voltage display window
Data entry keyboard ( double function keys are: 0 / mA decimal point / latch
/ ENT / password 4 / stepper
7 / 8 / 9 step step / step / step 2 / 1 step 3 / step )
Constant voltage / ENT indicating lamp
Constant current lamp
Output indicator
Ma status indicator
Power switch
Output ports:" -" negative polarity ( black )
GND: ground earthing terminal ( green )
Output ports:" +" the positive ( red )
