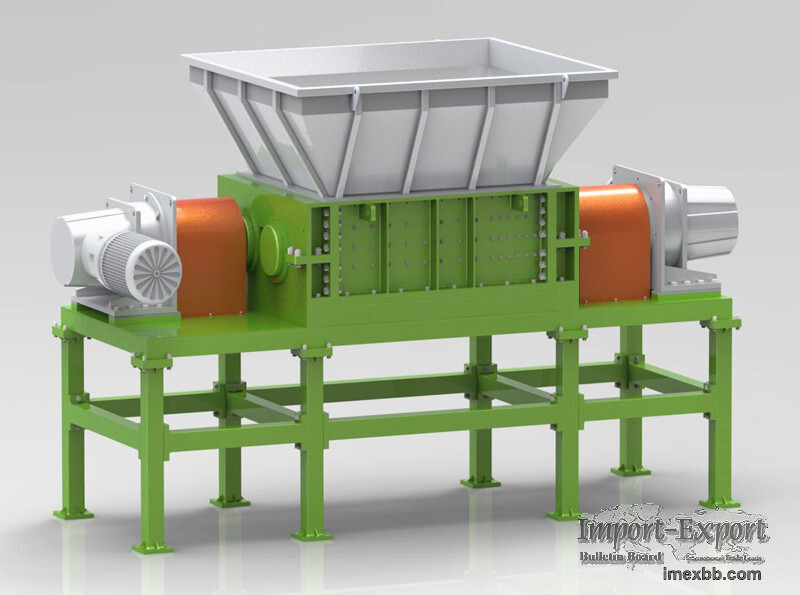

Double shaft shredder 2 Shaft Shredder

Double shaft shredder manufacturer in China

Used for heavy-duty shredding of tough materials like metals, aluminum
profiles, metal scraps, automobile scrap,tires,solid waste,etc. The most
advanced feature is that the shredder can turn forward and reverse without
stopping motors at anytime.

MACHINE DESCRIPTION
Powerfully shredding force is generated by hydraulic unit with dynamic-changing
rotating speed and torque. Optima shredders are equipped with hydraulic system
and motor for highly reliable performance and low maintenance cost.
The blades can be made integrated one or the hooks can be separated from the
base.
Blade material: H13, D2,42CrMo,alloy steel

Shredder Specification:
Model Motor Power Shaft Speed Rotor Dia. Blade Quantity Blade
Thickness
OSL1530 1.5kw 10~12rpm Φ200mm 14pcs 18.5mm
OSL1940 7.5kw 16~25rpm Φ245mm 20pcs 18.5mm
OSL2360 18.5kw 16~25rpm Φ290mm 24pcs 25mm
OSL26100 22kw 16~25rpm Φ320mm 25pcs 40mm
OSL33100 2*30kw 10~15rpm Φ430mm 20pcs 50mm
OSL41100 2*30kw 10~15rpm Φ534mm 20pcs 50mm
OSL41160 2*45kw 10~15rpm Φ534mm 32pcs 50mm

 Custom-made acceptable.

Optima Double shaft shredder Features:
Advanced structure, reasonable design, low speed, large torque and low noise.
The cutter comes with split type structure,it is convenient to replace,
specially usedfor shredding hollow materials, sheets, plates and other
materials.
Equipped with a power protection relay to effectively prevent motor damage
caused by power supply overvoltage, undervoltage and lack of equivalence.
Adopt PLC intelligent control, automatically detect the load of the motor,
automatically run forward, stop,reverse and alarm.
Equipped with video surveillance system.

Minimum Order: 1 sets
