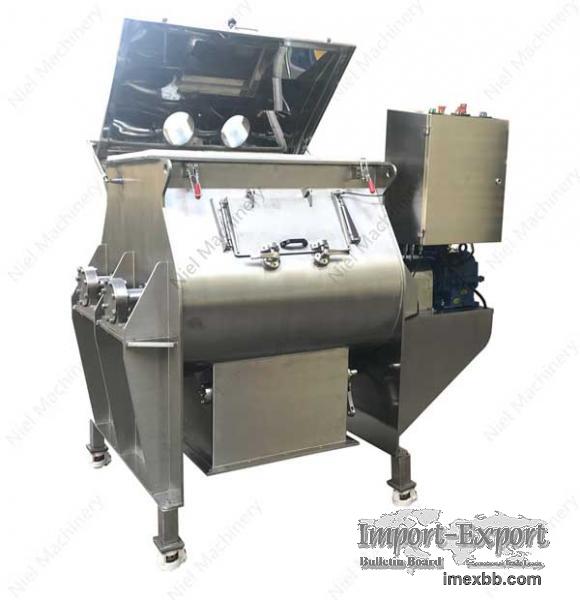

Double Shaft Paddle Mixer Machine

Dual paddle mortar mixer is also called non gravity mixer machine or twin
paddle mixer, it is widely used for drying and mixing of dry powder mortar,
chemical, pesticide, detergent, pigment food, monosodium glutamate, milk
powder, salt, feed, chemicals, ceramics, plastics, rubber additives, and other
powders.

Working Principle And Structure Editing of Double Shaft Paddle Mixer
To reduce the replacement cost of the wearing parts of the device, the paddle
can be made into two pieces, and a movable small blade can be placed on the
blade base to directly replace the worn small blade, which is economical and
quick; the discharge form is generally a pneumatic (manual) flap valve, and the
arc valve is closely embedded. Inside the cylinder, it is flush with the inner
wall of the cylinder, and there is no material accumulation and mixed dead
angle phenomenon; the standard type has a large opening door and a small
opening door, and the large opening door is opened to the side of the cylinder,
and the discharging is clean and fast, and the residue is small.

The machine is equipped with a pair of shafts rotating in opposite directions
in a w-shaped mixing chamber, and a blade having a certain angle and a certain
number of overlapping shapes is mounted on each shaft, and a fluid layer is
formed in the mixing chamber having a certain peripheral speed. The materials
in the layer are mixed under the action of the convection mixing principle and
are in a state of weightlessness in an instant, thus obtaining a homogeneous
mixture. A liquid ejecting port may also be provided above the container for
solid-liquid mixing of the sprayed liquid.

The machine's turning speed is 50%-80% of the critical speed. When the blade
distance is small, the critical speed can be approached.

Structural Characteristics of Double Shaft Paddle Mixer Machine
The double shaft paddle mixer machine makes full use of the principle of
convection mixing, that is, the flow layer is formed by the upper throwing
motion of the material in the mixer, and the instantaneous weight loss is
generated to achieve the optimal mixing effect state. The horizontal cylinder
of the machine is equipped with two-axis rotation. Reverse the paddle, the
paddle is at an angle to circulate the material in the axial direction and the
radial direction, so that the material is quickly mixed evenly.

Application of Dual Paddle Mixer
Dry mortar

Chemicals, chemicals, detergents,

Feed, pesticides,

Pigment food, monosodium glutamate, milk powder, salt

Ceramic, plastic, rubber additives


Main Features of Double Paddle Mixer
1. High efficiency:

Rotate reversely and throw materials to different angles, mixing time only 1-3
minutes

2. High uniformity:

Compact design and rotated shafts be filled with hopper, mixing uniformity up
to 99%

3. Low residue:

Only 2-5mm gap between paddles and wall, open -type discharge outlet

4. No leakage:

The patent design ensures the rotating axle discharge outlet wo leakage.

5. Full clean:

Full weld and polishing process for mixing hopper, W/o any fastening piece like
screw, nut

6. Elegant appearance:

The whole machine is from full stainless steel to make its profile elegant
except gear reducer case, direct mechanism, and bearing seat.

Technical Data of Double Shaft Paddle Mixer Machine
Technical Data
Model NSJ-300L NSJ-500L NSJ-1000L NSJ-1500L NSJ-
2000L NSJ-3000L
Effective Volume 300L 500L 1000L 1500L 2000L 3000L
Fully Volume 420 650 1350 2000 2600 3800
Loading Ratio 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8
Turning Speed 53rpm 53rpm 45rpm 45rpm 39rpm 39rpm
Total Weight 660kg 900kg 1380kg 1850kg 2350kg 2900kg
Total Power 5.5kw 7.5kw 11kw 15kw 18.5kw 22kw
Length(L) 1330 1480 1730 2030 2120 2420
Width(W) 1130 1350 1590 1740 2000 2300
Height(H) 1030 1220 1380 1480 1630 1780
Radius(mm) 277 307 377 450 485 534
Power supply 3P AC208-415V 50/60HZ
