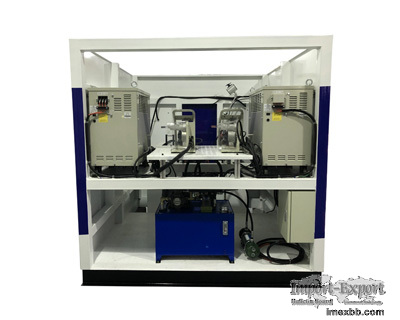

DOUBLE RIB BRAKE SHOE ANGLE WELDING MACHINE

It is suitable for the positioning and welding of the welding seam at the outer
corner formed by the double rib arc plate and the rib plate of the heavy truck
brake shoe assembly. The equipment adopts a fully enclosed overall design,
which has a beautiful appearance and is easy to maintain. There is an exhaust
port, and the user configures the exhaust equipment for the interface with the
exhaust duct or the welding machine fume treatment. The rotation of the
workpiece is driven by a servo motor, and the positioning is accurate and
reliable.

THE PARAMETER OF DOUBLE RIB BRAKE SHOE ANGLE WELDING MACHINE
The Application Of Double Rib Brake Shoe Angle Welding Machine
The equipment is mainly used for the welding of heavy truck brakes, and is a
special equipment for double-rib brake shoe fillet welding. The clamping,
positioning, displacement, welding, and unloading of the workpiece are all
automatically completed. The optimized program design makes the connection of
each step smoother and the welding efficiency higher. The special machine is
equipped with Japanese Panasonic welding machine, and the welding shape is
beautiful. The mold is light in weight, low in manufacturing cost, and can be
assembled manually without a crane. The equipment design has many advantages
such as easy to understand, easy to learn and easy to operate.

The Advantages Of Double Rib Brake Shoe Angle Welding Machine
The workpiece designed by the equipment is clamped by hydraulic method, and the
fixture is specially designed, which can effectively control the welding
deformation under the premise of ensuring the welding quality. The control
system is controlled by PLC and color touch screen. The operation interface in
Chinese and English is simple and intuitive. The welding current, voltage,
welding time, idle stroke speed, welding point angle difference and spot
welding parameters are all set by digital control.

As one of the most professional laser welding machine suppliers, we provide
automated laser welding machine, stainless steel welding machine, shoes for
brakes, commercial brake shoes, metal lathe and milling machine, laser welding
equipment, etc. For more, contact us.

Minimum Order: 1 sets
