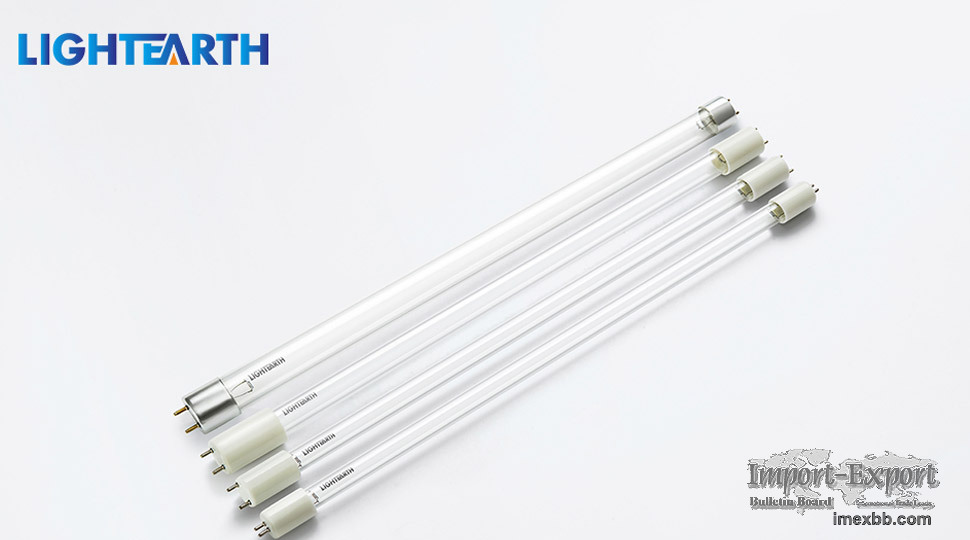

Double Pins UVC Germicidal Lamp

Hot cathode of 2 feet UV tube light, made of high quality quartz. The average
rated life of uv tube light 2 feet is 9000 hours. Different diameter (T5,T6,T8)
of lamp ,aluminum and ceramic bases can be chosen.The 254nm (UV output) was
tested in the laboratory.Two types of 2 feet UV tube light, emitting UV-C
wavelength at 253.7nm, ozone-free; while emitting UV-C wavelength both at
253.7nm and 185nm, ozone-generating.

Specification of 2 Feet UV Tube Light

TYPE TYPE DIAMETER POWER LENGTH CURRENT VOLTAGE UVC OUTPUT
BASE
Ozone Free Ozone mm W mm mA V μw/cm²
LES4W LES 4W-VH 15 4 135 170 28 9 G5
LES6W LES 6W-VH 15 6 212 160 42 16 G5
LES8W LES 8W-VH 15 8 288 150 56 21 G5
LES11W LES 11W-VH 15 11 212 330 49 22 G5
LES16W LES 16W-VH 15 16 288 350 54 36 G5
LES10W LES 10W-VH 15 10 331 230 46 23 G13
LES15W LES 15W-VH 15 15 437 340 51 47 G13
LES20W LES 20W-VH 15 20 589 360 60 65 G13
LES25W LES 25W-VH 15 25 437 600 43 70 G13
LES30W LES 30W-VH 15 30 894 370 100 100 G13
LES40W LES 40W-VH 15 40 1199 440 103 145 G13
LES55W LES 55W-VH 15 55 894 780 87 160 G13
LES75W LES 75W-VH 15 75 1199 850 110 220 G13

Application of 2 feet UV tube light
SCHOOLS AND KINDERGARTENS: UVC tube light for sterilization is used for
classroom sterilization, prevent cross infection, reduce morbidity.

HOSPITALS: ward sterilization, such as pediatric ward, obstetrics and
gynecology ward, infectious ward, reduce cross infection, speed up the recovery
of patients. Low-pressure UVC tube light for sterilization is installed at the
door of the infectious disease ward to form ultraviolet door for long-term
irradiation. UVC tube light for sterilization is used for sterilization in the
vent to prevent the spread of bacteria to other areas and cause cross
infection.

PUBLIC PLACE: in the public ventilation pipe installed in the amount of UVC
tube light for sterilization, can send aseptic air to the room, prevent cross
infection. Sterilization of reception room, meeting room, etc.

FOOD PROCESSING PLANTS: UVC tube light for sterilization of aseptic workshop,
bacteria room, food processing workshop of food factory and storage room.

LIGHTEARTH is a professional germicidal lamps supplier, we provide germicidal
lamp, uvc disinfection lamp, ultraviolet disinfection lamp and etc.if you want
to know more, please contact us.
