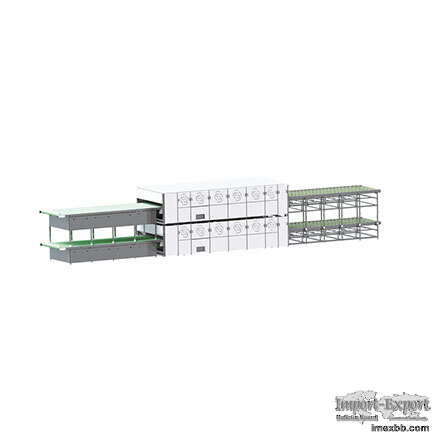

Double-layer & Single-chamber Solar Panel Laminator

Double-layer & single-chamber PV module laminator has a double layer, loading
stage, one heating laminating stage, and unloading stage.

Equipment Configuration and Features of Double-layer & Single-chamber PV Solar
Module Laminator
Control System

Adopt Siemens PLC control system

It integrates automatic/semi-automatic/ manual three control modes. Fully
automatic and manual loading, laminating, unloading switchable.

Recording function of important system parameter characteristic curve (upper
and lower vacuum degrees, table temperature).

Segmented pressurization function, pressure speed adjustable.

Adopt chain transmission structure for conveyor system, continuously
loading/unloading of modules.

The programmable controller can easily communicate with the computer and meet
the requirements of modern industrial automation control.

Loading and unloading stages are equipped with independent control buttons for
easy loading and unloading； The loading platform is designed to be a step-by-
step control mode, which can set a certain forward distance according to actual
needs. That means, that each time the button is clicked, the modules go forward
a certain distance automatically.

Process parameters can be set, and various process parameters can be displayed
in the same window. It can store a variety of process recipes for product
selection.

Automatically remembered process parameters that will not be lost after
rebooting. Lamination count statistics function, which is easy to check the
working times and production per shift, can also be used as a reference for
equipment repair, maintenance and vulnerable parts replacement cycles.

Basic Specification of Double-layer & Single-chamber PV Module Laminator
Item Spec
Lamination : 2700mm×7400mm
Open height : maintenance height 300mm/working height100mm
Laminating Chamber Thickness : ≥30mm
Heating Plate Thickness : ≥55mm
Control Mode : Touch Screen
Temperature Control : PID intelligent Control
Heating Method : Oil heating
Power : AC380V 50Hz 3-phase 5-wire
Heating Mode : Oil Heating
Power Supply : AC380V 50Hz 3-phase 5-wire
Total Power : 215KW
Running Power: 130KW
Temperature Uniformity : ±2℃
Temperature Range : RT--180℃
Compressed Air Flow(max) : 1600/min
Compressed Air Pressure : 0.6MPa—0.8MPa

Now the solar laminator price is reasonable, if you have needs to buy a solar
laminator, please contact us.
