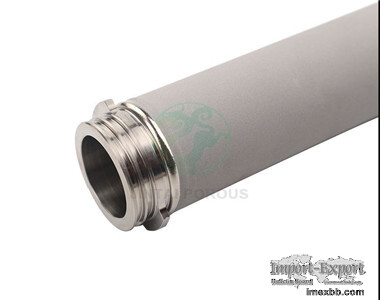

Double-Layer Filter Porous Metal Filter

Sintered Metal Filters Suppliers

The double-layer filter element is the patent product of Jintai Company. By
controlling different raw materials and adopting a one-time molding process,
the gradient distribution of the pore size can be achieved. The double-layer
structure plays a role of support and filtration at the same time, and the
gradient-distributed pore structure can achieve a good separation effect with
lower energy consumption. Compared with the rolled filter element, the double-
layer filter element has a more complete structure, does not require welding,
and is more corrosion resistant. It is the first choice to replace the rolled
filter element and is also a new solution in the field of cross-flow
filtration.

Features of Double-Layer Filter
Interchanged internal and external precision
Better permeability
Higher economy
Pore size gradient distribution

Specifications
Material selection Stainless steel: 316L
Other materials required by the customer
Filtration Grade 0.5um 1um 3um 5um 10um
Other grade required by the customer
Data & Specifications Length: The longest seamless tube is 1000mm
Diameter: 40-75mm
Other specifications and sizes required by customers
Connection Thread, flange, flat pressing, quick connection, etc.
Other ways required by customers

Typical Application
Polymer melt filtration
Cleaning and filtering of chemical raw materials and intermediates
High temperature flue gas filtration
Security filtration in the water treatment system
Filtration and recovery of catalysts in chemical, pharmaceutical and other
fields
