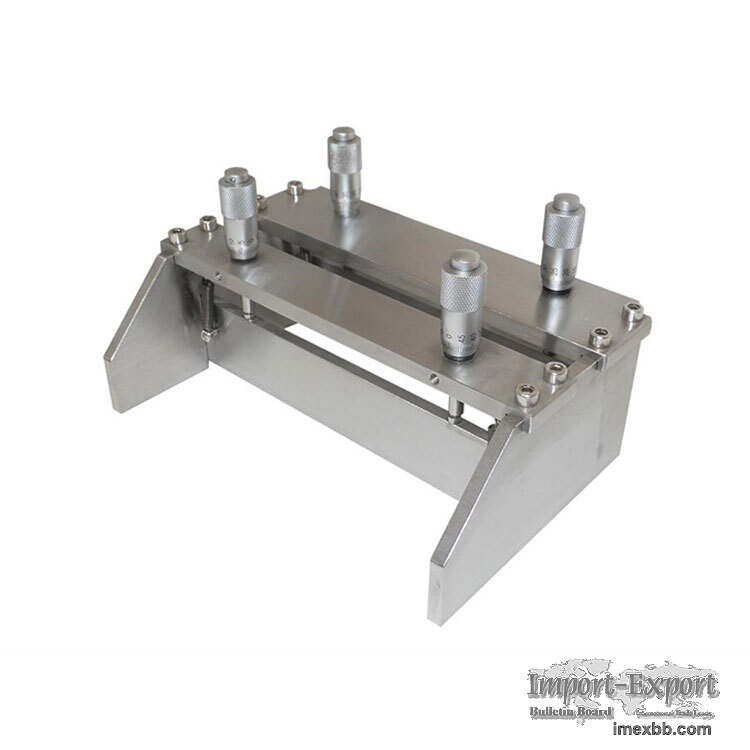

double doctor blade micron adjustable film applicator with width 150mm

Double doctor blade micron adjustable film applicator-width 150mm

Se-KTQ-150D is a double-doctor-blade adjustable film applicator. Due to the two
doctor blades, the coating effect will be more uniform. The operator can adjust the
gap between the doctor blade and the coated surface through a micrometer. This tool
is especially suitable for laboratory production of battery electrodes, pre-ceramic
tape and various films.

Main feature
1. Two scrapers with a width of 150mm
2. The gap between the doctor-blade and the coated surface: 10-5000um
3. Micrometer adjustment head, the adjustment accuracy is 10um
4. Made of 304 stainless steel (click on the picture for details)

Minimum Order: 1 sets
