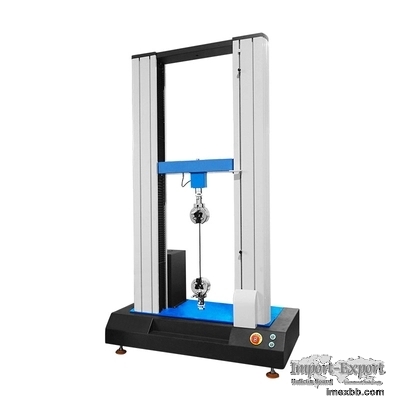

Double Column 220V 2000kg Tensile Testing Machines

Customized Computer Servo Double Column Universal Test Machine





GENERL SPECIFICATIONS

Estimated Packaging Dimensions: (W*D*H) 690*1080*1790mm

Power supply source: single-phase, 220V, 50/60Hz (can be appointed)

Estimated Gross Weight: 250kg

HS Code: 9024800000





STANDARD FEATURES



Item Description
Frame capacity 2000kg
Load cell brand
Germany brand load cell for high accuracy

2000kg (500,1000kg are optional)

Load accuracy 0.5% F.S
Control system PC with windows 7 system
Motor Panasonic servo motor w/AC variable speed drive system, high-precision
mechanical ball screw rod
Force reading kgf, Ibf, N, KN, T etc
Vertical test space 1200mm including fixture
Horizontal test space ≤400mm
Test speed 0.1~500mm/min (adjustable)
Software TM 2101
Curves display Load- elongation, Elongation-time, Time-elongation, Stress-
strain
Data display Max. force, speed, sample information, strength(Kpa, Mpa, N/mm,
N/mm2) etc…
Safety features
E-Stop

Over-load protection

Upper and lower limit switches

Load sensor with automatic retreat


universal tensile testing machine


APPLICATIONS

Tested sample: laminated materials, wood, leather, rubber & plastic, metal
material, etc.

Different test with different grips: tensile, peel, tear, heat seal, adhesive,
bend and open force.

Deformation under defined load: Test deformation under defined load of tested
sample

Load under defined deformation: Test load under defined deformation of tested
sample

Software can issue word/excel report with results for max. force, elongation,
tensile strength, peel strength, tear strength, compression strength, etc.



QUALITY ASSURANCE

The guarantee period with FOC within 1 year (not including expendable parts
cost and transport & travel fees)

During the guarantee period, Haida shall supply free maintenance or replacement
for the damaged part (just for non-expendable part) caused by non-human
reasons;

If any quality problems occur within the guarantee period, and Haida must
provide on-site service, the transport and travel expense shall be borne by
buyer;

If any big quality problems occurs out of the guarantee period, Haida will
provide a maintain service, the transport and travel expense shall be borne by
buyer, also charge for a favorable price for new parts;

Haida will provide a lifetime favorable price to the buyer for expendable &
non-expendable parts used in system operation, equipment maintenance;



The following conditions need to be paid reasonably even in the guarantee
period:

Natural disaster

Operating mistakes

Voltage is not fit for our manual

Uninstall without our guides

Damaged for borrowing to others

Damaged for without authorized machine modification

Damaged for without authorized calibration

Without authorized transshipment mistake



Attentions: the machine cannot be used following situations:

Vibration, rocking place.

Direct sunlight.

Hot, dusty, damp places.

To ensure safe, AC supply of the machine should be well grounded.

Do not use strong solvents (such as: benzene, nitro oil) washing machine.

Do not inject water and debris into the machine to prevent damage to electrical
components and electrical shock.

Machine’s disassembly and debugging can only be measured by the State
Department approved the units and the company, other people not allowed to
overhaul.
