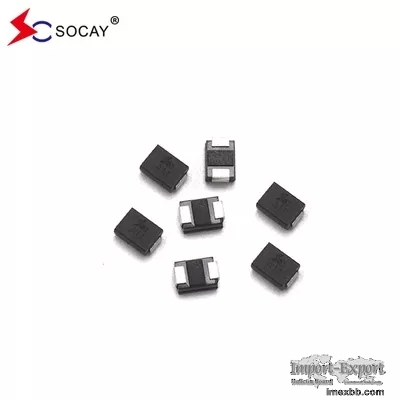

DO-214AA(SMBJ) Transient Suppression Diode (TVS) SMBJ58CA Components

PRODUCT DESCRIPTION
DO-214AA(SMBJ) Transient Suppression Diode (TVS) SMBJ58CA Components​





Transient Suppression Diode (TVS) SMBJ58CA DATASHEET: SMBJ_v88.2.pdf





Transient Suppression Diode (TVS) SMBJ58CA Explain:

SOCAY's main products include a full range of Ceramic Gas Discharge Tubes
(GDT), Transient Suppression Diodes (TVS Diodes), ESD Suppressor, Thyristor
Surge Suppressors (TSS), Spark Gap Protectors (SPG), Varistors (MOV), Chip
Varistors (MLV), PTC Resettable Fuse, Negative Temperature Coefficient
thermistors (NTC Thermistors), Chip Bead, Schottky Diodes , Zener Diode,
etc. From circuit design to product testing (and provide test reports), we
will provide you with one-stop services in the field of circuit protection.
With excellent quality and service, SOCAY has won extensive praise from
customers and respect from the industry.Transient Suppression Diode (TVS)
SMBJ58CA 's Peak Pulse Power Dissipation with a 10/1000µs waveform is 600W.





The product adopts SMB surface mount technology, which has extremely fast
response time (sub-nanosecond level) and fairly high surge absorption
capability. Designed to protect sensitive electronic equipment in circuit
applications from voltage transients caused by lightning strikes and other
transient voltage events.
characteristic:

> Adopts standard surface mount SMB package
> Peak pulse power at 10×1000μs waveform is 1500W, repetition frequency
(duty cycle): 0.01%
> Fast response time: typically less than 1.0ps from 0 volts to VBR minimum
> Excellent clamping capability
> Small leakage current
> High temperature welding guaranteed: terminal 260°C/40 seconds
> Halogen-free and compliant with RoHS and Reach test standards
application:
> i/o interface
> ac/dc power supply
> low frequency signal transmission line (rs232, rs485, etc.)
