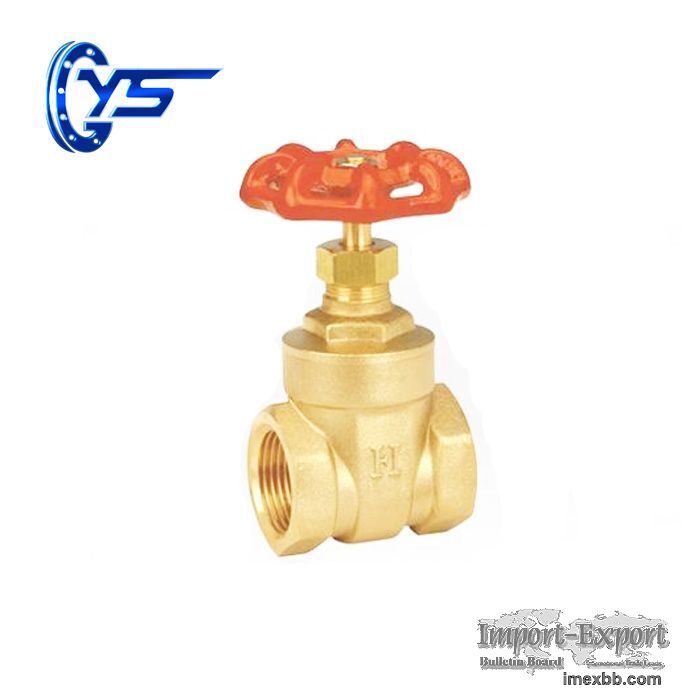

DN 8-100mm Brass Gate Valve 3 way gate valve gate valve manufacturer

DN 8-100mm Brass Gate Valve 3 way gate valve gate valve manufacturer
Material: brass
Medium temperature: -10-120 ° C
Mode of operation: manual
Medium: water, oil, non-corrosive, non-corrosive gas
Caliber: DN15-100
Valve type: gate valve
Connection method: thread
Working pressure: 1.6Mpa
3 way gate valve Details
Brass Gate Valve Z15W-16 Main parts and materials
The main material  Brass
Nominal pressure 1.6mpa
Suitable temperature —10℃≤T≤120℃
Suitable medium Water, oil,
non-corrosive,
non-corrosive gas
Thread NPT/BST/ISO228

Brass Gate Valve Z15W-16 Outline and connecting measurement
Type Nominal
DN(mm） SIZE Measurement（mm）
L B H D
Z15W-16 15 1/2 41 12.5 67.5 53
20 3/4 44 16.5 75 53
25 1 51 20.5 80 57.5
32 1 1/4 53 27 96.5 72
40 1 1/2 58.5 33 111.5 72
50 2 64.5 43 126.5 78
65 2 1/2 76.5 54 156 97
80 3 77.5 65 180 108
100 4 91.5 86.5 226.5 126

If you are finding Cast Steel Globe Valve supplier in China, we will be your
best choose! We have our own factory, so we can give you a cheap price!
Click here to learn more about valves.
https://www.hbysindustry.com/

Minimum Order: 1 pieces
