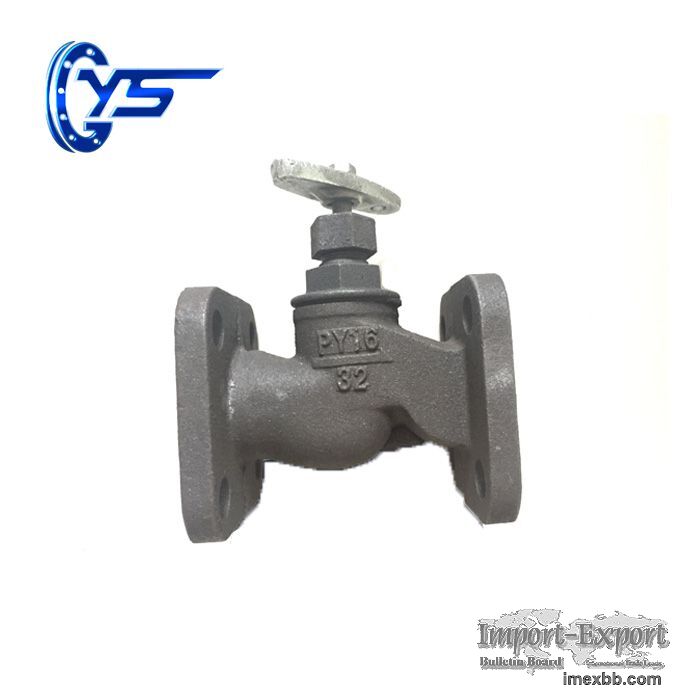

DN 15-200mm Square Flange Globe Valve

DN 15-200mm Square Flange Globe Valve globe valve manufacturer globe valve
supplier Flanged Globe Valve
Medium temperature: ≤200 ℃
Operation method: manual
Medium: water, steam
Caliber: DN25-50
Pressure: 1.6mpa
Body material: gray cast iron
Connection method: flange
globe valve Details
Square Flange Globe Valve Main parts and materials
Parts name Material
Valve body Bonnet Grey iron
Disc Grey iron
Stem Carbon steel

Square Flange Globe Valve Function and specification
Type Nominal
pressure
（mpa） Testing pressure（mpa） Suitable
temperature Suitable
medium
Strength
(Water) Enclose
(Water)
J41T-16 1.6  2.40  1.80  ≤200℃ water, steam

Square Flange Globe Valve Outline and connecting measurement
Type Nominal
DN(mm） Measurement（mm）
L L1 b f D1 D2 4xφ14
J41T-16 25 120 16 14 2 φ85 φ68 4*φ14
32 140 17 16 2 φ100 φ78 4*φ18
40 170 21 16 2 φ110 φ88 4*φ18
50 200 22 16 3 φ125 φ102 4*φ18

Our Flange Ball Valve’s materials mainly include WCB cast iron stainless
steel, etc. GOST, JIS, DIN, BS, ANSI gate valve, ball valve, globe valve,
butterfly valve are all our main product.
Click here to learn more about valves.
https://www.hbysindustry.com/

Minimum Order: 1 pieces

Click to Enlarge
